Welding and assembly tables (3D)

3D Welding Tables Manufacturers

Our company, "Intellectual Robot Systems," supplies welding tables from two manufacturers — Demmeler (Germany) and WELD (China).

Demmeler is a world leader in manufacturing durable, high-precision, and reliable welding equipment, known for German quality and a wide variety of fixtures.

WELD tables in our catalog provide high accuracy and reliability for welding and assembly tasks. They are made from high-quality Q355B steel and feature a plasma nitrided coating, which increases surface hardness, protects against spatter adhesion, and prevents corrosion.

Advantages of WELD and Demmeler

• Flatness: deviation does not exceed ±0.1 mm/m, ensuring precise assembly and welding of components.
• Plasma nitriding: the tabletop surface has increased hardness. The coating provides corrosion protection and extends service life, while preventing spatter adhesion.
• Ease of use: millimeter scales on the table surface simplify positioning of parts, and holes on the side walls expand fixation possibilities.
• High load capacity: can withstand loads up to 18,000 kg, allowing work with heavy structures.

Types

Welding tables are typically categorized by hole diameter. When choosing a welding table, pay attention to the tabletop thickness and the cavity system for reliable part fixation.

There are three hole systems in total:

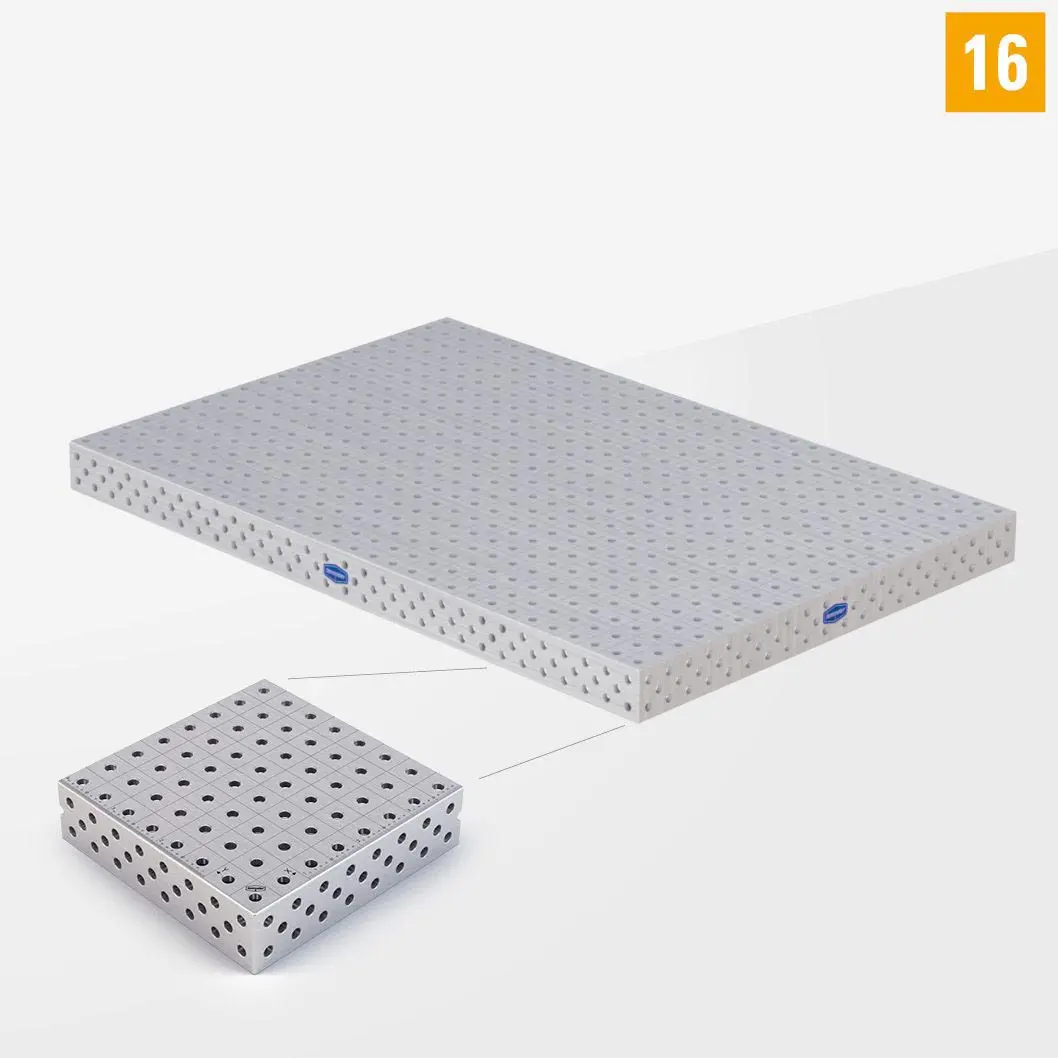

• 16 system
  • Diameter 16 mm, material thickness 12 mm, side wall height (if present) 100 mm
  • Hole spacing — 50 mm, enhancing assembly convenience for complex structures
  • Suitable for assembling and welding small but critical components
• 22 system
  • Diameter 22 mm, material thickness 18 mm, side wall height 150 mm
  • Hole spacing — 50 or 100 mm
  • Diagonal hole grid possible
  • For medium complexity tasks

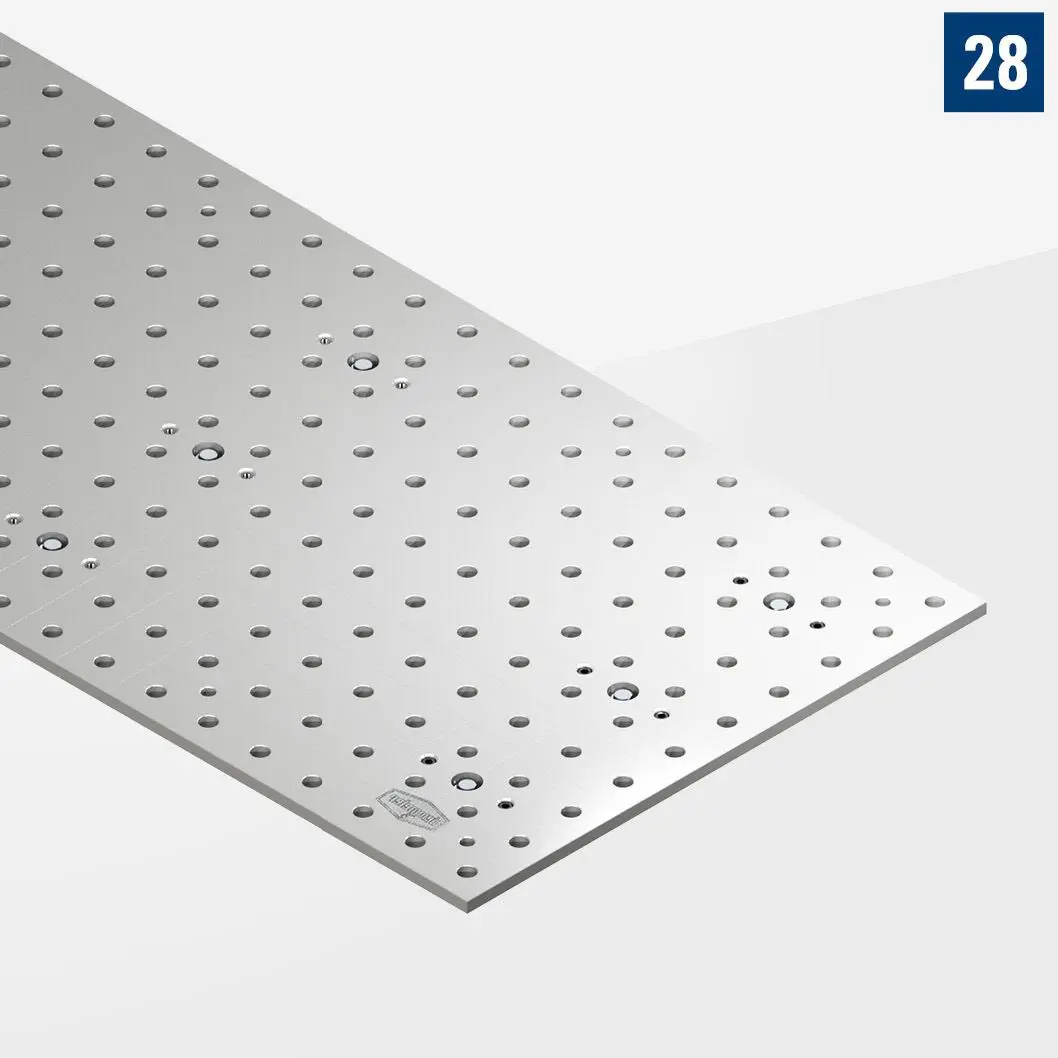

• 28 system
  • Diameter 28 mm, material thickness 25 mm, side wall height 200 mm (300 and 400 mm upon request)
  • Hole spacing — 100 mm (50 mm upon request)
  • Variants with diagonal hole grid available
  • For large and complex welded structures
  • High load capacity

You can purchase a 3D welding table with increased side wall height of 300 or 400 mm, significantly expanding fixation options for complex structures.

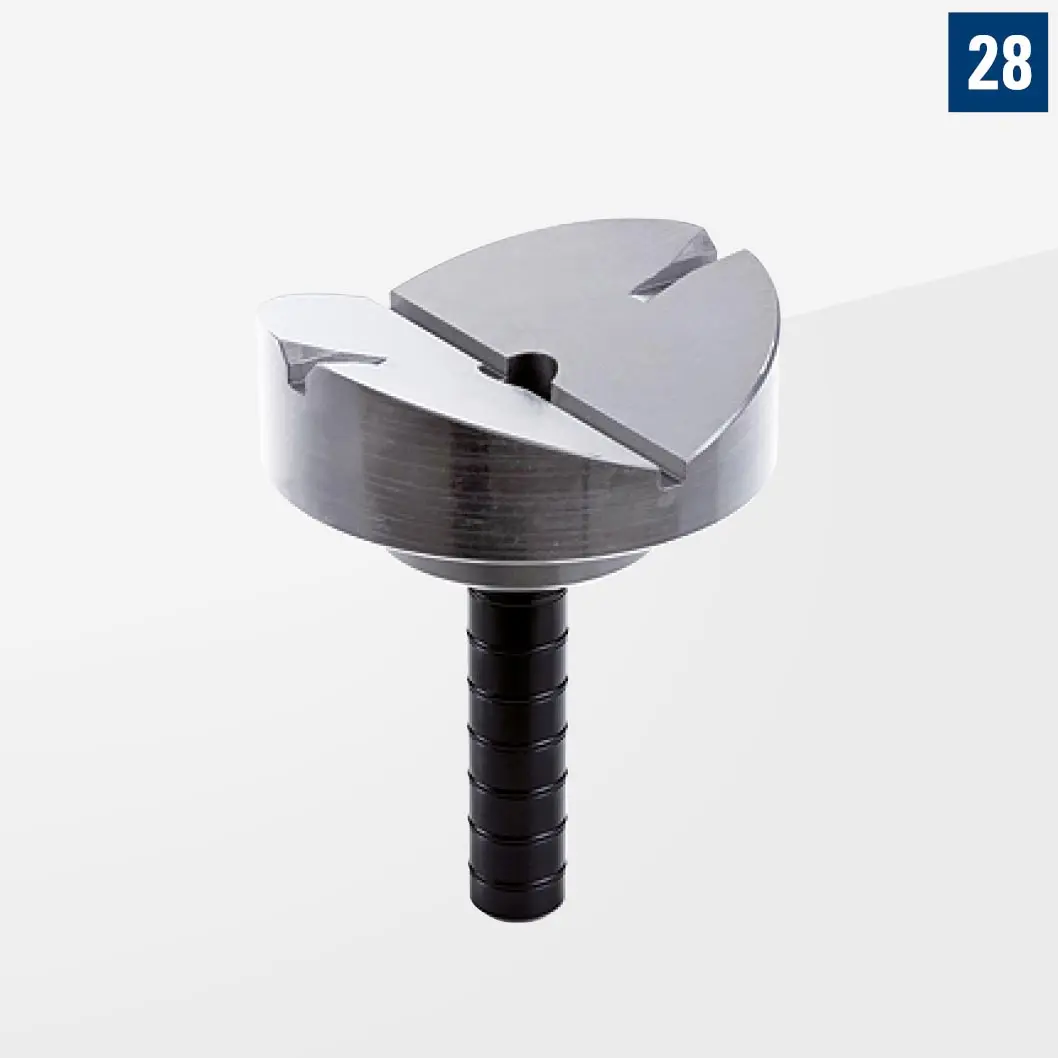

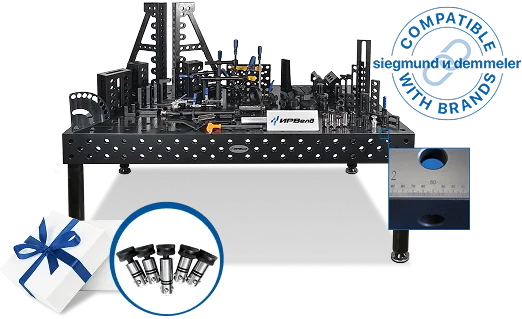

Fixtures for tables play a key role in ensuring precision and convenience during assembly and welding. Special clamping elements such as stops, clamps, corner brackets, bolts, and screws allow secure and quick fixation of parts of any shape or size. Fixtures are selected depending on the hole system (16 mm, 22 mm, or 28 mm) and table design features. Using high-quality fixtures improves assembly stability, speeds up work, and minimizes the risk of welding errors.

Our company offers competitive pricing, extended warranty, and fast delivery throughout Russia. Browse the full range of products in our catalog or on the website and choose the optimal option for your production needs.
