Robotic Technological Complex for Welding and Laser Cutting
The Robotic Technological Complex is designed for laser cutting and MIG/MAG welding of special-purpose products.
Application of products: military industry
Cutting technology: laser
Welding technology: mechanized welding with a consumable electrode in shielding gases (MIG/MAG)
Types of welded joints: butt, T-joints, corner, lap
Welding position: flat position

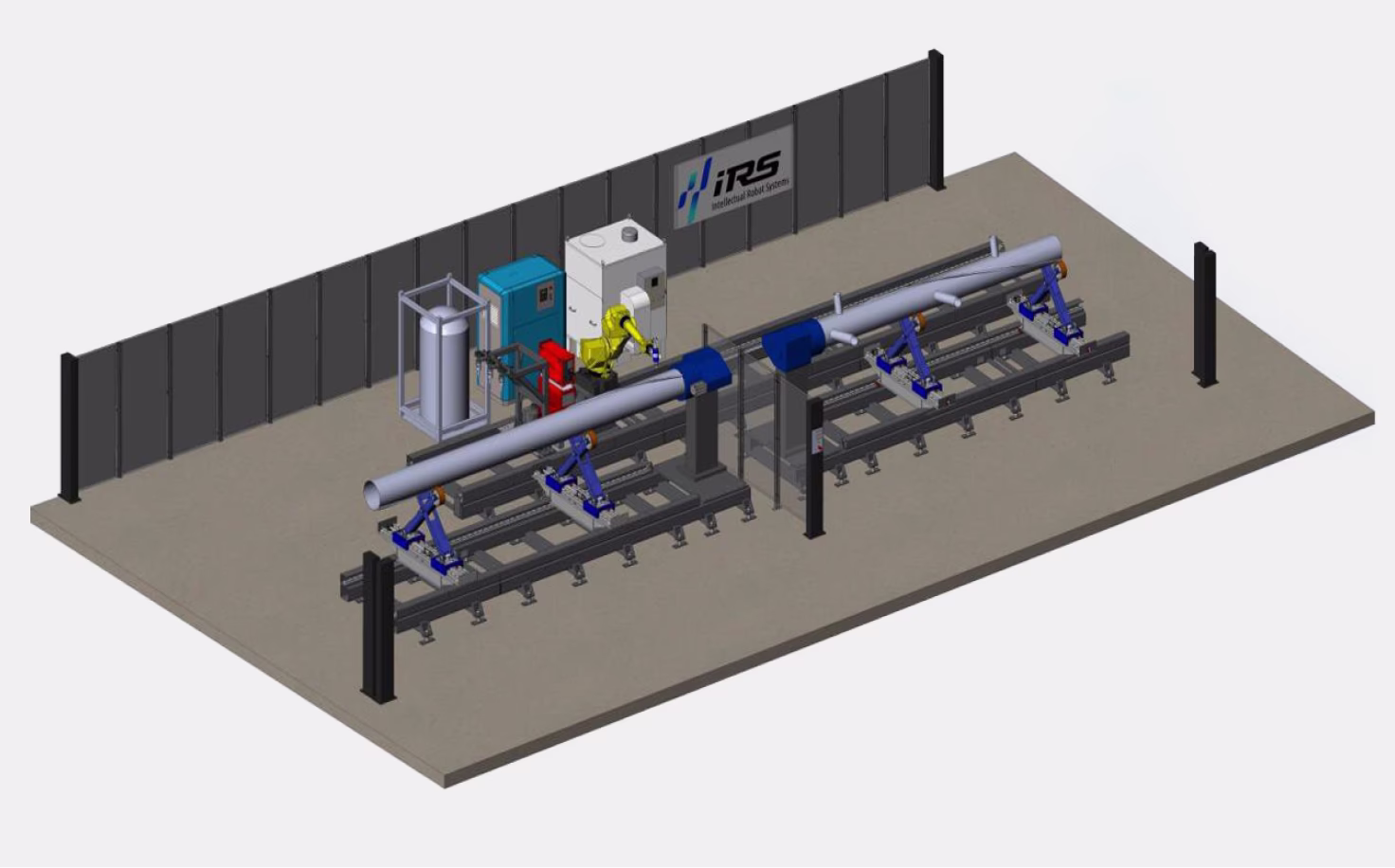

Equipment Composition
- Industrial robot on a rail guide
- Laser-optical tracking system kit
- Spot laser tracking system kit
- Automatic tool change system based on pneumatics (MIG/MAG welding/laser cutting)
- Welding equipment kit
- IPG 1 kW laser cutting kit with additional Z-axis on the laser head
- Single-axis welding positioner with adjustable roller supports, load capacity 4.5 t
- Cleaning station
- High-vacuum fume extraction system
System Components
General view of the complex
Welding area. General view
Welding area. Positioner with roller supports on linear guide
Welding area. Laser tracking system with Fronius CMT welding torch
Laser cutting area. Tool change station with 3D laser cutting head
Nederman fume extraction system
Examples of the Complex in Operation
Welding area. General view
Laser cutting on a complex 3D surface of the workpiece
Laser cutting on a complex 3D surface of the workpiece
Welding of circumferential seams
Welding of longitudinal seams
General view of the complex
Gallery of completed projects
