Robotic complex for MIG/MAG welding
The complex enables the execution of various welds when processing components made of carbon and alloy steels.
Objectives of the robotic complex:
- Ensure, through improved quality and reliability of welds, that the operational characteristics specified in the design documentation are met, particularly regarding the hermeticity of the product under storage with excess internal pressure, and the preservation of the product throughout its intended service life.
- Enhance the technical level of production through the use of modern production tools and approaches to building the technological process.
- Improve working conditions and environmental protection.
General View of the Complex
Equipment composition of the complex:
- Industrial manipulator
- Manipulator controller
- Manipulator control panel
- Movable column on a linear guide
- Two-axis positioner
- Hardened welding table
- Welding power source
- Welding torch cooling unit
- Wire feeding mechanism
- Robotic hose package set
- Water-cooled torch
- Filter-ventilation unit
- Laser barrier system stands
- Welding torch cleaning station
Additional equipment not shown in the diagram:
- Weld seam tracking sensor
- Sensor cooling unit
- Gas discharge ramp
Operation of the Complex

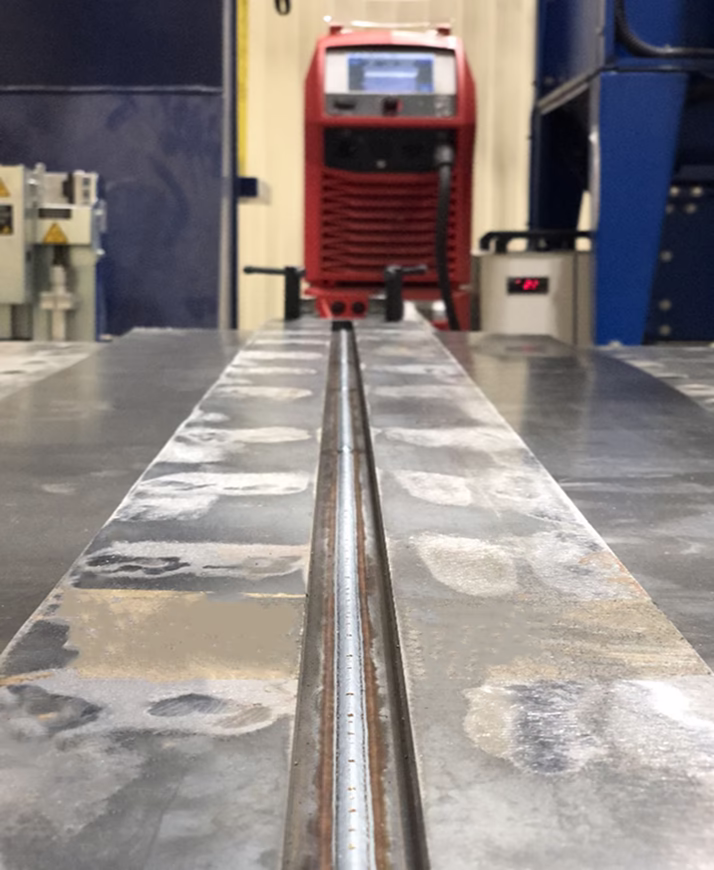

Longitudinal seam welding process of a sample on the welding table

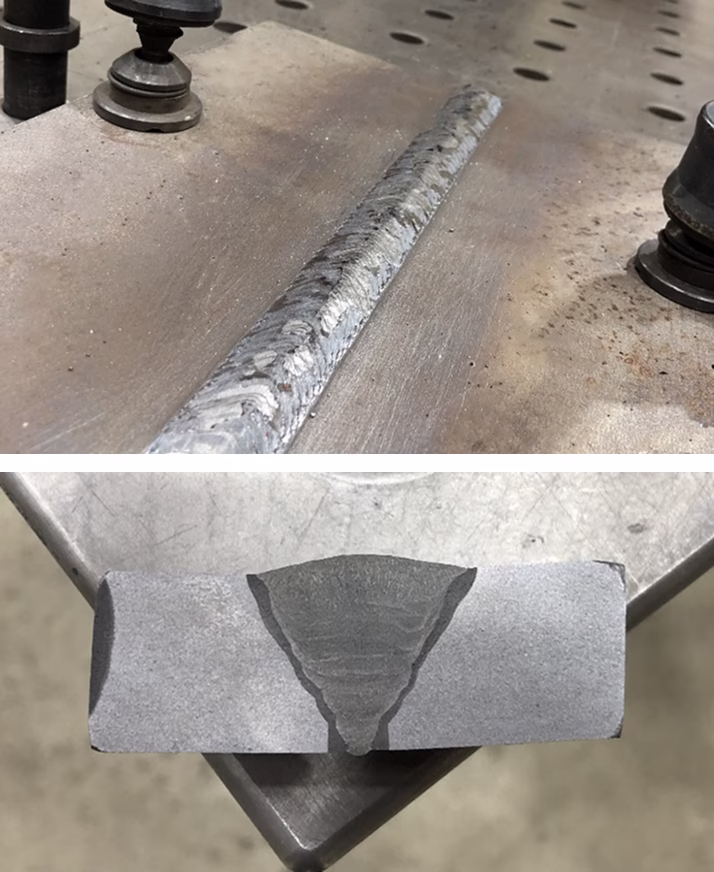

Multi-pass welding of 12Х2НВФА steel, 20 mm thick, 8 passes
