Robotic complex for MIG/MAG welding
The complex provides longitudinal and circumferential welding of shells made of carbon and alloy steels.
Objectives of the robotic complex:
- Ensure, by improving the quality and reliability of welds specified in design documentation, operational characteristics such as the tightness of the product under storage with excess internal pressure, and its integrity throughout the designated service life;
- Enhance the technical level of production through the use of modern production equipment and approaches to building the technological process;
- Improve working conditions and environmental protection.

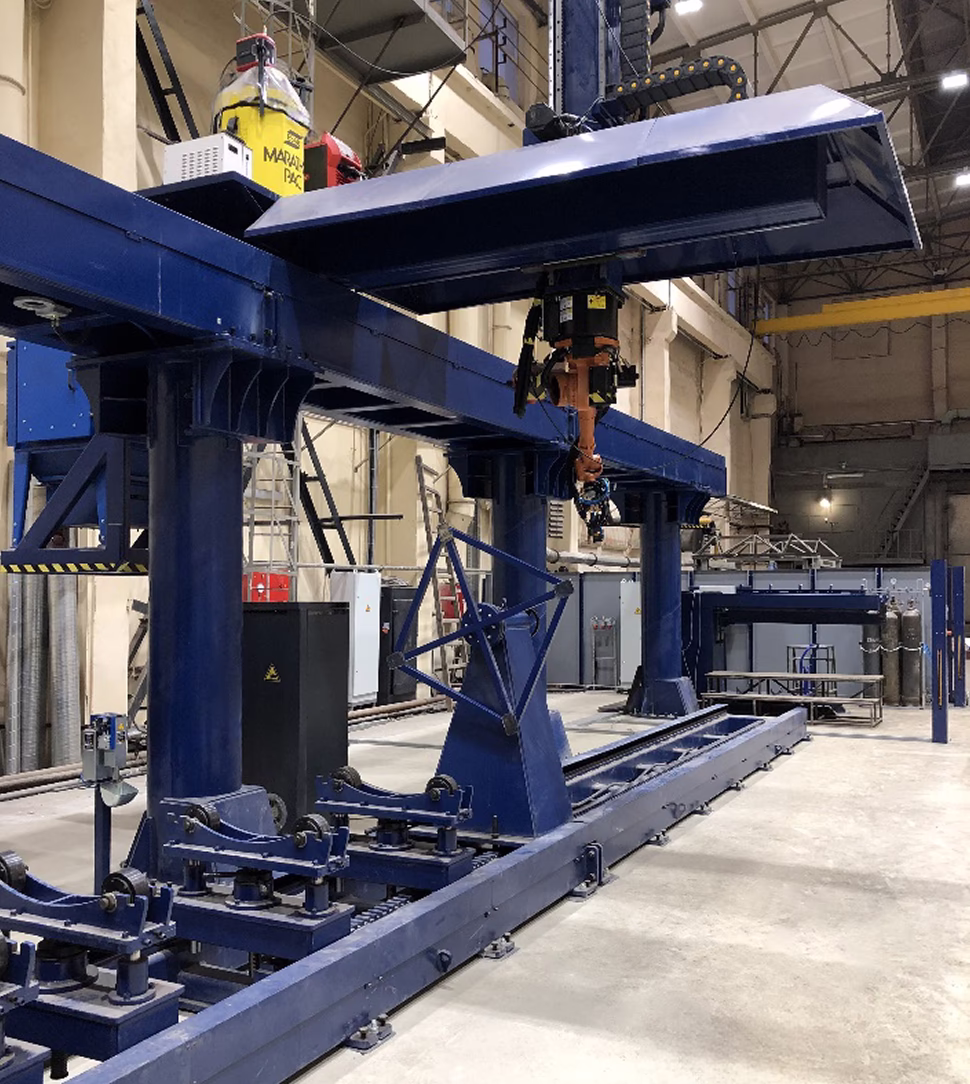

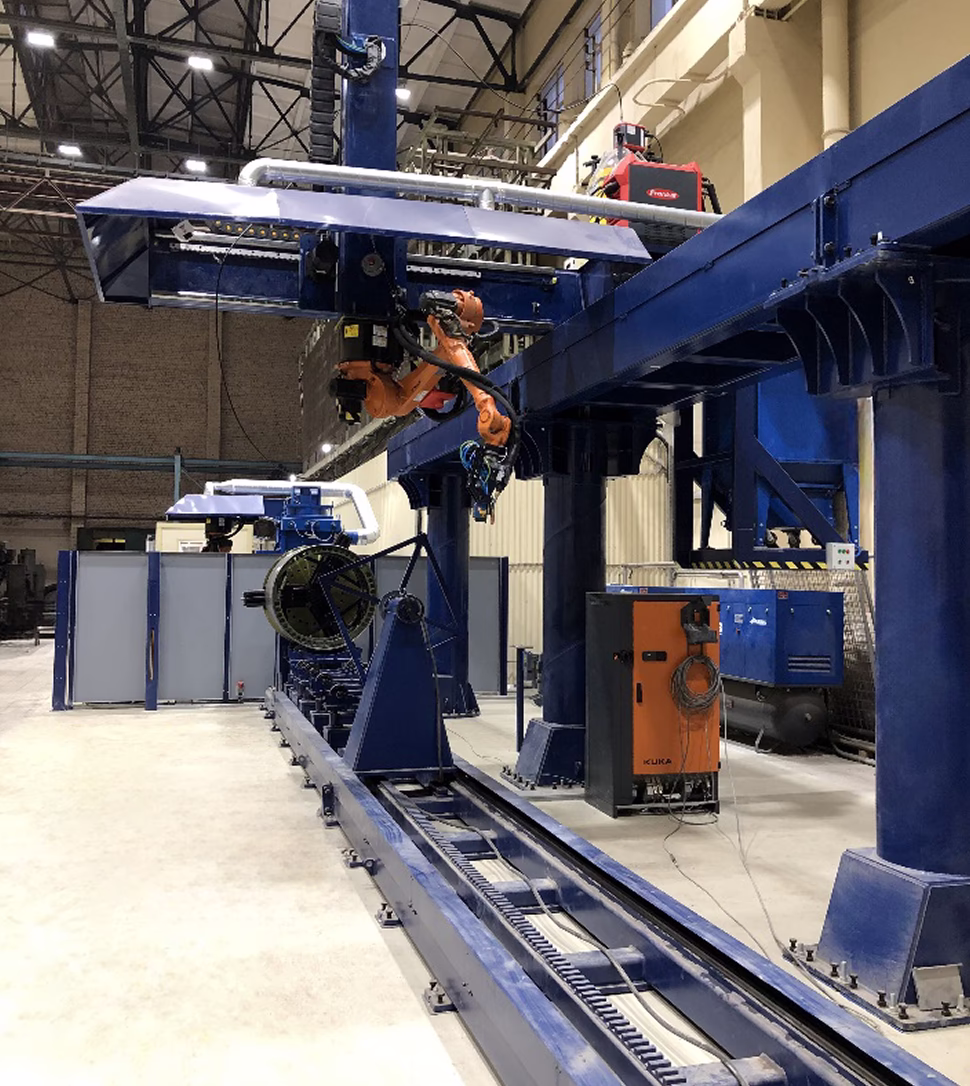

Overview of the Complex
Equipment composition of the complex:
- Industrial manipulator
- Manipulator controller
- Manipulator control panel
- Movable column on linear guide
- Single-axis positioner
- Pneumatic clamp fixture for longitudinal welds
- Welding power source
- Welding torch cooling unit
- Wire feeder mechanism
- Robotic hose package set
- Driven water-cooled torch
- Welding power source control panel
- Filter-ventilation unit
- Roller support
- Laser barrier system stands
Additional equipment not shown in the diagram:
- Weld seam tracking sensor
- Welding torch cleaning station
- Tracking sensor cooling unit
- Copper backing cooling unit for pneumatic clamp fixture
- Gas discharge ramp
Operation of the Complex

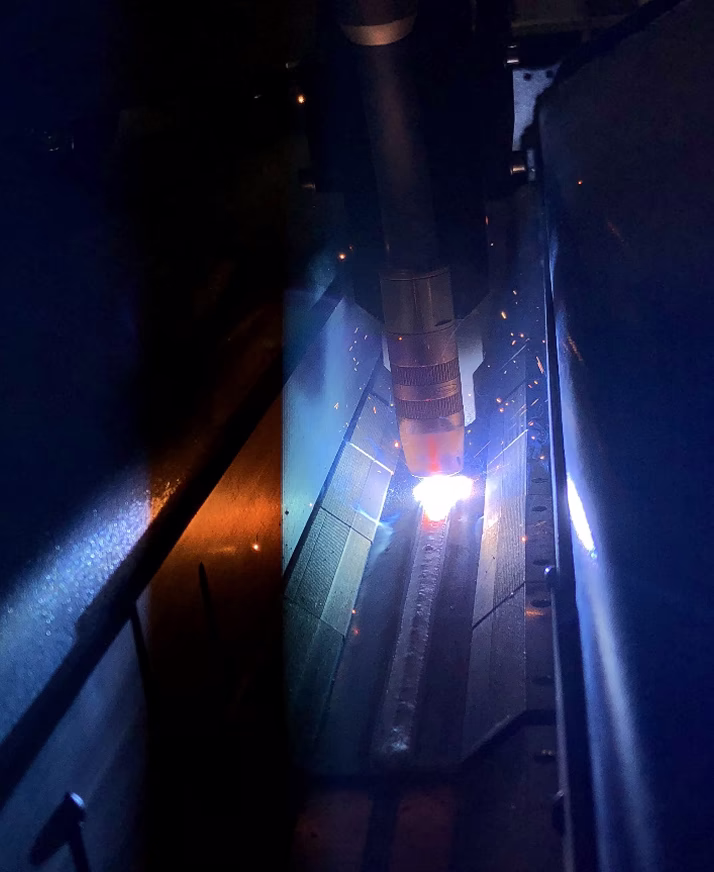

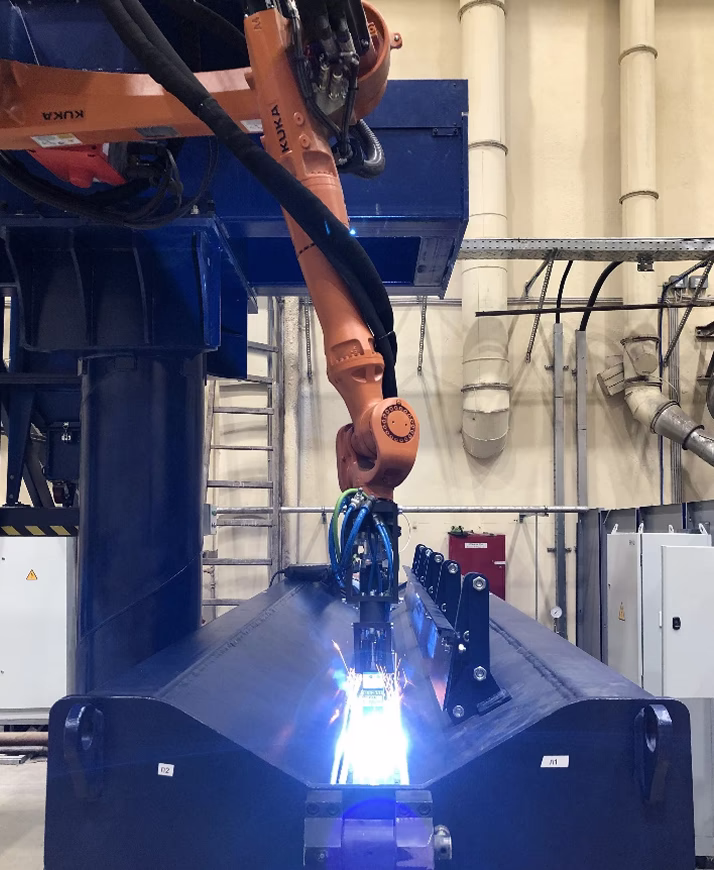

Longitudinal weld process of a sample on the pneumatic clamp fixture

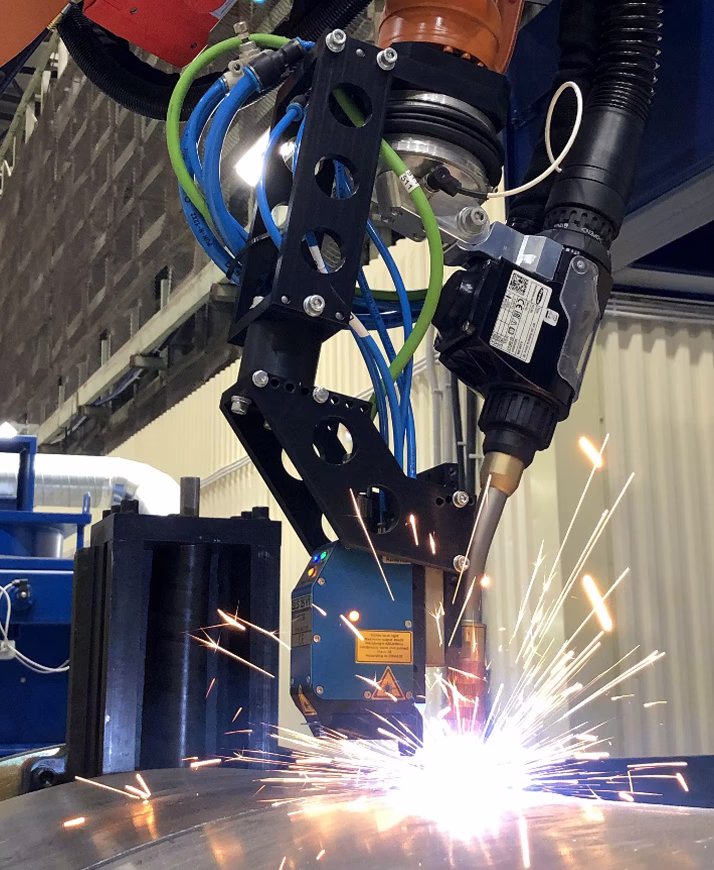

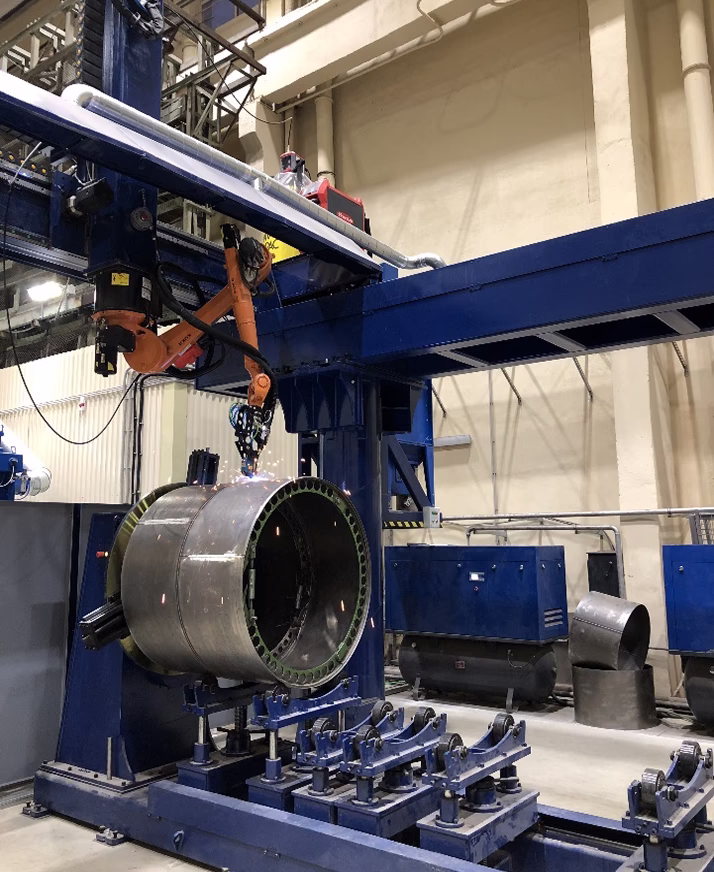

Circular weld process of a sample on the single-axis positioner
Gallery of completed projects
