MP 200 Plasma Spraying System
This system is the optimal solution for manual plasma spraying. The entire process is controlled manually from a single operator panel, making the system extremely simple and easy to operate. The use of modern control system components ensures high-quality coatings, and the process is reliable and safe.

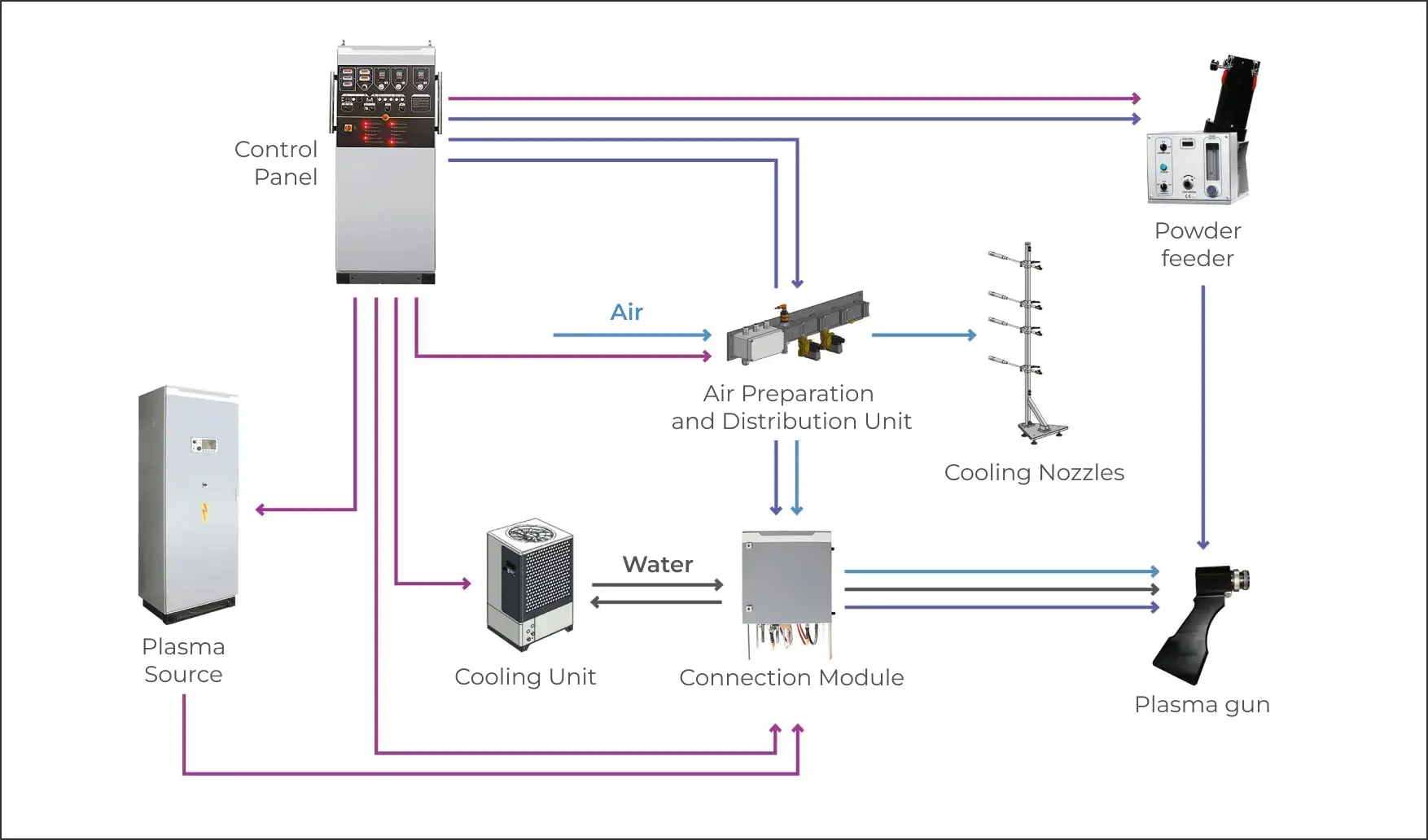

MP 200 UNIT VIEW

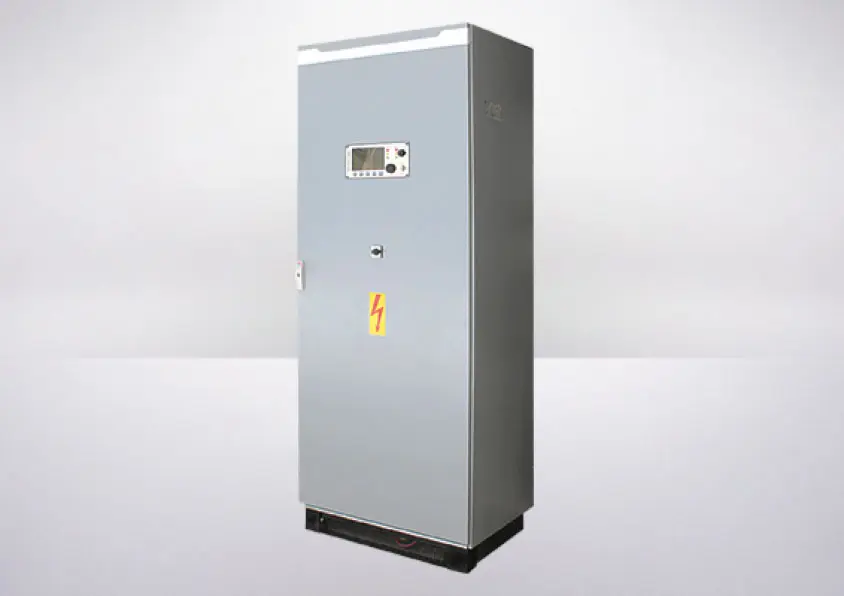

MP 100 Plasma Source
- Highly efficient and ultra-powerful inverter source
- Maximum output power: 100 kW
- Duty cycle: 100%
- Ripple-free currents
- Protection class: IP21
- Protection class: IP44 (optional)

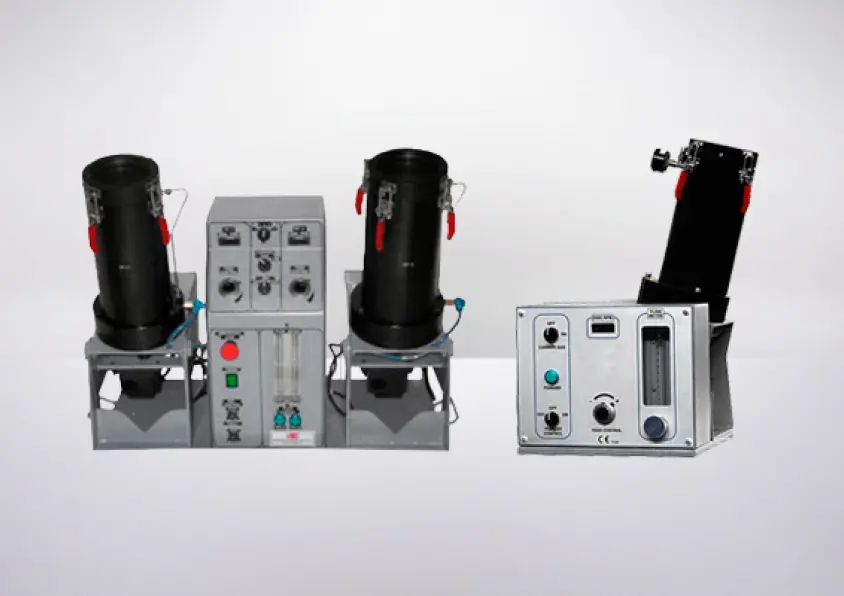

Powder feeder
A reliable powder feeder ensures a consistent supply of sprayed material. Powder feed is manually adjusted by varying the feed disk speed from the feeder control panel. This powder feed system ensures precise dosing and, consequently, consistent quality of sprayed coatings.
- Feeder type: volumetric
- Feed disk rotation speed: 0-20 rpm
- Number of powder flasks: 1 or 2
- Flask volume: 3.5 L / 5 L

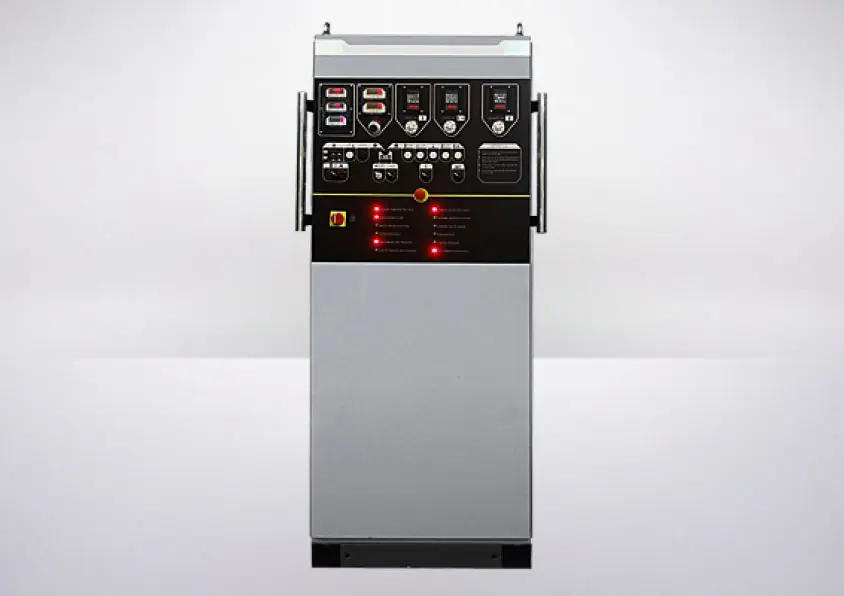

MP 200 Control Panel
The process control panel is designed as a single unit, integrating the operator panel with controls and indicators, as well as a gas module complete with high-precision mass flow meters for monitoring and adjusting process gas flow. Depending on the selected plasma gun, the unit has preset ignition parameters for automatic process startup, ensuring proper operation and preventing premature plasma gun failure.
System Features
- Automatic plasma gun ignition based on preset parameters
- Manual adjustment of process parameters
- Digital display of process parameters on the operator panel
- Use of high-precision mass flow meters to regulate process gases
- Display of external device status: start/stop
- Monitoring of process gas pressure, plasma torch cooling water temperature, and air flow in the filter and ventilation unit
- Hydrogen leak sensor
Gallery of completed projects
Plasma guns used
The system can use one or more plasma guns, depending on the task at hand. The control system presets operating parameters for each plasma gun, preventing failure due to improper operation.

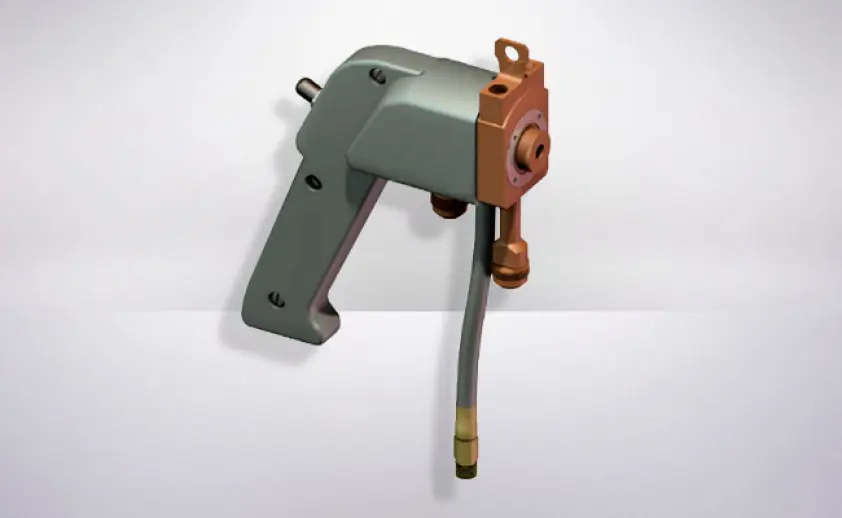

3MB Plasma gun
The 3MB plasma gun is widely used in industrial thermal spraying and was developed for spraying a variety of materials. The plasma gun's design was developed for versatility, safety, and ease of use.
| Combustible gases | Argon, hydrogen, nitrogen |
| Power output | 40 kW |
| Weight | 1.5 kg |

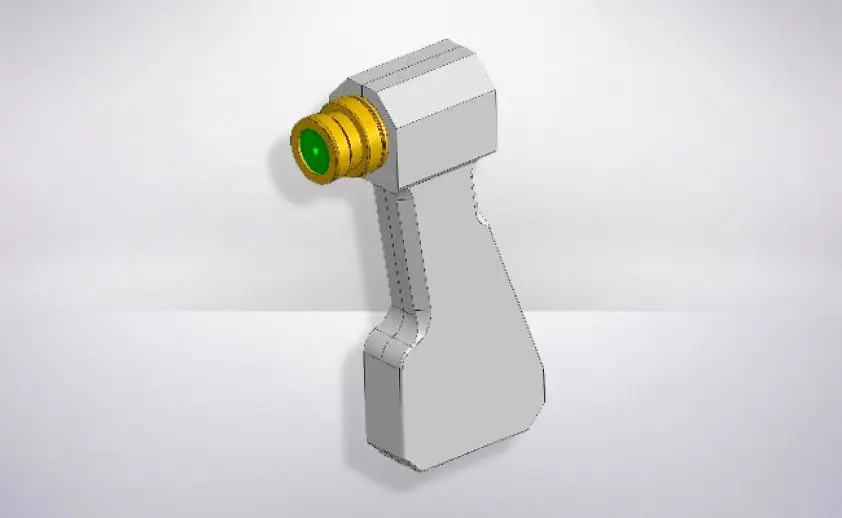

F4 HB Plasma gun
ДThis plasma gun is based on the standard F4 plasma gun and is adapted for handheld use. The F4 plasma gun is the most widely used plasma gun in the world and is capable of handling most plasma spraying applications.
| Combustible gases | Argon, hydrogen, nitrogen |
| Output power | 55 kW |
| Weight | 2.8 kg |

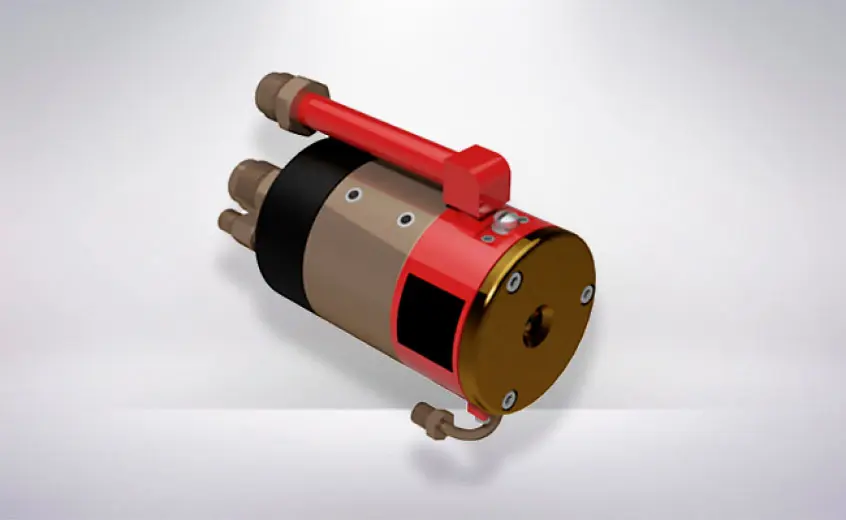

SG-100 Plasma gun
The SG-100 plasma gun is a high-performance plasma gun with a power output of up to 80 kW. A unique feature of the torch is the ability to feed powder into the torch, which increases heat transfer efficiency. The SG-100 is suitable for both high-performance spraying systems used in mass production and small-volume spraying operations requiring flexibility and versatility. The plasma torch can be equipped with an extension for spraying internal surfaces.
| Combustible gases | Argon, hydrogen, nitrogen |
| Power output | 80 kW |
| Weight | 3 kg |
Additional Equipment
A spray system typically includes the primary coating application equipment, as well as all necessary peripheral components, such as a noise reduction chamber, industrial robot, positioners, a filter and ventilation unit, etc. The final configuration of each spray system depends on the specific process task and customer requirements. Our company has extensive experience in designing and implementing turnkey industrial spray systems. We operate our own production facility covering over 5,500 square meters, several design bureaus, and an automated control system department. For over 10 years, we have been developing comprehensive thermal spray systems, providing our customers with the best solutions that meet the most modern industrial production requirements.
