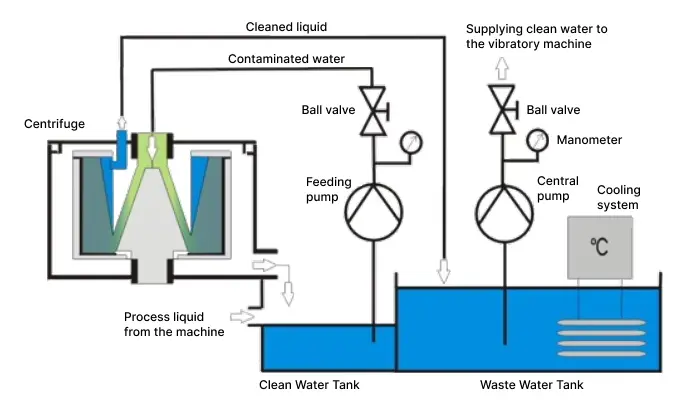

Contaminated water containing solid particles is fed directly from the finishing machine into the centrifuge via a pumping station. A pre-filter screen collects large contaminants at the inlet to the collection tank. A built-in agitator prevents premature settling of solid particles at the bottom of the collection tank. Contaminated water is continuously fed into the rotating centrifuge drum by a compressed-air diaphragm pump. The high centrifugal force generated by the rotating drum ensures that even very fine and light solid particles are deposited on the drum walls as solid sludge. The cleaned liquid is collected by an outlet pipe and returned to the finishing machine. After a set time, the sludge can be removed from the drum. In automatic centrifuges, the sludge is removed mechanically by a scraper knife that peels it from the drum walls. Depending on the required water volume, multiple finishing machines can be connected to a single process water recirculation system.
- Very high cleaning efficiency, capable of removing particles down to 1 µm.
- Manual sludge removal
- Cleaned liquid outlet with back pressure of 0.5 bar.
- Contaminated water tank volume — 100 L
- Cleaned water tank volume — 400 L
System Composition:
1. Cleaning Centrifuge
- For cleaning contaminated liquids such as emulsions, grinding or cutting oils.
- For a volumetric flow rate of:
90 L/min with emulsion
78 L/min with oil at 10 cSt - Manual solid waste removal
- Centrifuge housing made of steel 1.0037
- Rotor made of aluminum
- Mounts made of stainless steel 1.4301
- Outlet pipe made of stainless steel with a carbide nozzle for low wear
- Outlet of cleaned liquids with a counter-pressure of 0.5 bar into the clean liquid tank
- Return of residual liquids after rotor stop
- Drive via V-belt transmission by a three-phase motor, drive power: 2.2 kW, 400 V, 50 Hz
- Non-wearing braking of the rotor by direct current (DC)
- Rotor speed 3723 RPM, separation factor 1800 x g
- Rotor volume 4.5 liters, solid matter capacity 3.0 liters
- Solid matter insert made of wear-resistant and shape-stable polyamide (PA). The handles of the solid matter insert are located externally for easy access and no contact with separated solids during emptying.
- Sound pressure level 74 dB(A)
- Includes a safety switch for electrical locking of the housing lid
- Includes a sensor for monitoring rotor stop
- Finish: RAL 7035 light grey, or upon request
2. Tank Unit B100/400
- Inlet tank for contaminated liquids with 3/4" drain plugs and tank lid, capacity approx. 100 liters
- Side inlet into the tank
- Submersible pump P1 for feeding the centrifuge
- Installed in the contaminated liquids section of the tank
- Flow rate at viscosity 10 cSt: Q = 80 L/min
- Drive power 0.55 kW, 400 V, 50 Hz
- Level sensor for controlling pump P1 On/Off and maximum level = fault
- Tank for cleaned liquids with 3/4" drain plugs, with tank lid, capacity approx. 400 liters
- Level control for minimum level = fault (dry-running protection for pumps)
- Finish: RAL 7035 light grey, or upon request
3. Pump System P2
- Submersible pump P2 for supplying the production machine
- Installed in the cleaned liquids section of the tank
- Flow rate at viscosity 10 cSt: Q = 80 L/min
- Drive power 2.2 kW, 400 V, 50 Hz
