IRS-304000 IRS 3MB Plasma gun 3MB plasma spray guns are well known in the thermal spray industry for their reliability and are among the most widely used plasma spray guns worldwide.
The 3MB is a versatile spray gun that delivers high-quality, durable, and repeatable thermal spray coatings.
The 3MB is considered the industry benchmark and is highly regarded for its durability and reliable performance. Many manufacturers choose the 3MB for a variety of coating application specifications.
The 3MB is capable of applying high-quality coatings to metals, metal alloys, carbides, composites, mixed materials, metal-ceramics, abrasives, and ceramic powders.
The 3MB is available in both a machine-mounted (3MBM) and a portable (3MBH) configuration.
The modular design allows for easy maintenance of the gun's main components. The nozzles and electrodes are simple plug-in/pull-out units that require no alignment or adjustment.
The 3MB series plasma gun can efficiently operate with a single primary gas—pure argon or nitrogen—as well as multiple gases, including argon, nitrogen, hydrogen, and helium.

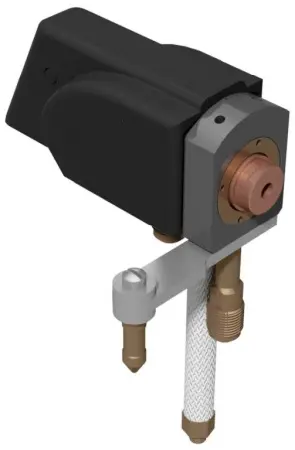

3MB Plasma Gun

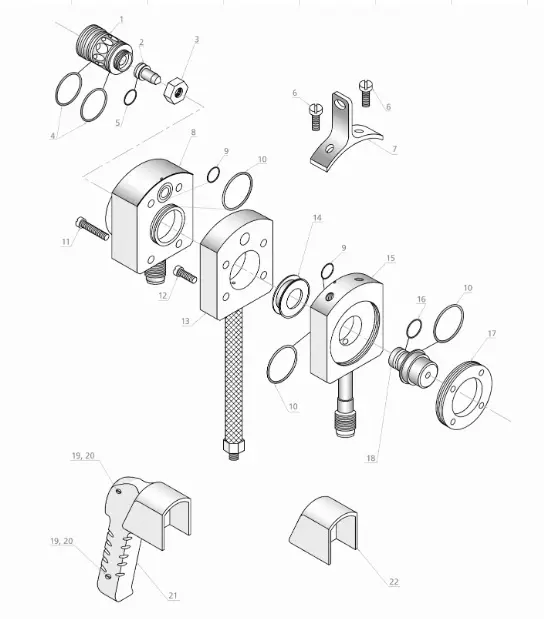

| No. | Article | Name | METCO Article No. | FST Article No. |
|---|---|---|---|---|
| - | IRS-303999 | 3MB gun complete, machine mounted | - | 304.000-01 |
| - | IRS-304000 | 3MB gun complete, hand held | - | 304.000-02 |
| 1 | IRS-304001 | Electrode holder | 1000510 | 304.006 |
| 2 | IRS-304002 | Electrode assembly | 1000506 | 304.001 |
| 3 | IRS-304003 | Electrode locking nut-black | 1000688 | 304.034 |
| 4 | IRS-304004 | O-Ring, electrode holder | 1000520 | 304.017 |
| 5 | IRS-304005 | O-Ring, electrode assembly | - | 304.018 |
| 6 | IRS-304006 | Mounting bracket mounting screw | 1000511 | 304.007 |
| 7 | IRS-304007 | Mounting bracket | 1000509 | 304.005 |
| 8 | IRS-304008 | Rear gun body assembly | 1036012 | 304.009 |
| 9 | IRS-304009 | O-Ring, front and rear gun body | - | 304.014 |
| 10 | IRS-304010 | O-Ring, gun bodies and nozzle | - | 304.015 |
| 11 | IRS-304011 | Screw - rear gun body | 1000516 | 304.012 |
| 12 | IRS-304012 | Screw - front gun body | 1000834 | 304.002 |
| 13 | IRS-304013 | Insulator and hose assembly | 1036011 | 304.010 |
| 13 | IRS-304014 | Insulator hose 6” (hose only) | 1001470 | 304.010-01 |
| 14 | IRS-304015 | Distribution ring, 1-hole argon | 1000687 | 304.033-01 |
| 14 | IRS-304016 | Distribution ring, 2-hole nitrogen | 1031653 | 304.033-02 |
| 15 | IRS-304017 | Front gun body assembly | 1036008 | 304.008 |
| 16 | IRS-304018 | O-Ring, nozzle, rear | - | 304.016 |
| 17 | IRS-304019 | Nozzle locking ring | 1000515 | 304.011 |
| 18 | IRS-304020 | “G” nozzle | 1000721 | 380.100-01 |
| 18 | IRS-304022 | “GE” nozzle | 1000722 | 380.101-01 |
| 18 | IRS-304024 | “GH” nozzle | 1000723 | 380.102-01 |
| 18 | IRS-304026 | “GP” nozzle | 1000724 | 380.103-01 |
| 19 | IRS-304027 | Handle screw | - | 304.046 |
| 20 | IRS-304028 | Handle nut | - | 304.003 |
| 21 | IRS-304029 | Handle assembly, hand held | 1036015 | 304.019 |
| 22 | IRS-304030 | Handle assembly, machine mounted | - | 304.086 |
