- Pulsed laser with output power up to 1 kW
- Adjustable processing width up to 100 mm
- Focal length – 150 mm
- Pre-set modes and manual settings
- Base unit with air cooling
- Cleaning gun with 10 m cable
- Laser safety glasses
- Ethernet cable
- Protective lenses
- Spare parts kit
- Mechanical engineering
- Metal rolling, metal processing
- Food industry
- Utilities / Municipal services
- Delicate cleaning without heating or damaging the substrate
- Surface structuring
LightCLEAN Economic Benefits
| Shot Blasting | LightCLEAN | |
| Cleaning cost, RUB/m² (direct expenses) | 58 | 0.5 |
| Average productivity, m²/min | 5 | 0.5 |
| Savings, RUB/m² | 57.5 | |
| Adjusted savings, RUB/m² | 53 | |
| Average monthly savings (90,000 m²), RUB | 4,770,000 |
LightCLEAN Applications
| Typical tasks and applications | Features | Types of contaminants | Types of surfaces |
| Mold cleaning | Cleaning without damaging or heating the substrate | Rubber, plastic, grease | Stainless and low-carbon steel |
| Food industry, medicine | Cleaning without damaging or heating the substrate | Polymerized oil, carbon deposits, burnt particles | Stainless steel, glass |
| Pre-/post-welding cleaning and other joint types | High cleaning productivity | Degreasing, dirt, rust, oxide films, primer, coating residues, slag, carbon deposits, discoloration, etc. | All weldable metals |
| Pre-/post-welding cleaning and other joint types | Cleaning without heating the substrate | Degreasing, dirt, rust, oxide films, primer, coating residues, slag, carbon deposits, discoloration, etc. | All weldable metals |
| Mechanical engineering | High cleaning productivity | Primer, paint, rust, dirt, oil, etc. | Metals, plastic, glass |
| Mechanical engineering | Cleaning without damaging or heating the substrate | Primer, paint, rust, dirt, oil, etc. | Metals, plastic, glass |
| Mechanical engineering | Surface structuring | Primer, paint, rust, dirt, oil, etc. | Metals, plastic, glass |
| Utilities / industrial cleaning companies | Cleaning without damaging or heating the substrate | Paint, dirt, rust, paint residues | Stone, metals, glass |
| Utilities / industrial cleaning companies | Surface structuring | Paint, dirt, rust, paint residues | Stone, metals, glass |
| Metal rolling, metal processing, job shops | High productivity | Rust, scale | Metals |
| Metal rolling, metal processing, job shops | Cleaning without damaging or heating the substrate | Rust, scale | Metals |
| Metal rolling, metal processing, job shops | Surface structuring | Rust, scale | Metals |
Comparison of LightCLEAN and Traditional Technologies:
| Mechanical cleaning (abrasives) | Pellet cleaning | Sandblasting | Chemical cleaning | LightCLEAN | |
| Consumables required | Yes | Yes | Yes | Yes | No |
| Workspace requirements | Low | High | Medium | Very high | Medium |
| Noise level | High | High | High | Low | Medium |
| Precision processing capability | Medium | Low | Low | Low | High |
| Difficulty in disposing of processing waste | Low | Low | Medium | High | Low |
| Productivity | Low | High | High | High | Medium |
| Automation capability | Low | Medium | Medium | Low | High |

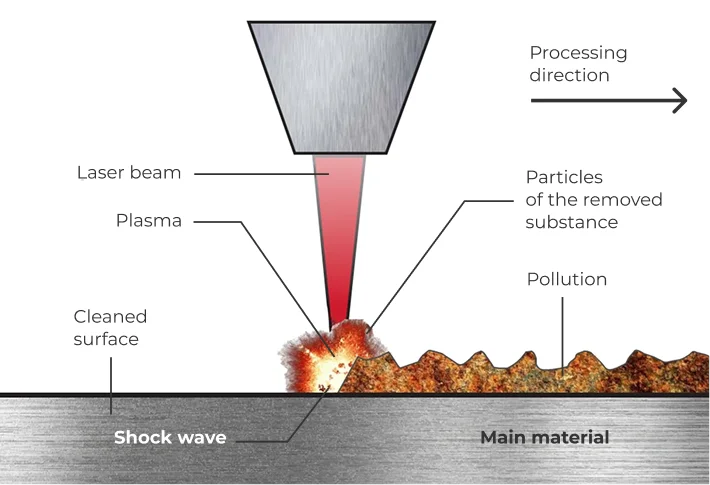

How does laser radiation remove contaminants?
Laser cleaning is a technological process where laser radiation acts on a layer of contaminants, removing it without affecting or minimally affecting the underlying material.
Removal occurs due to localized evaporation of the substrate surface. At the moment of evaporation, the pressure of the high-temperature vapors destroys and removes the non-metallic contamination from the metal surface. LightCLEAN integrates a unique, powerful pulsed laser whose settings allow effective surface layer removal without heating the substrate. Pre-set cleaning modes enable fast startup without manual parameter adjustment.
Control Panel and Connections:
LightCLEAN Specifications
| Characteristic | Min. | Typ. | Max. | Unit |
| Laser operation mode | Pulsed | Pulsed | Pulsed | |
| Laser wavelength | 1070 | 1070 | 1070 | nm |
| Power adjustment | 5 | 100 | % | |
| Output power | 1000 | 1000 | 1000 | W |
| Pulse repetition frequency range | 25 | 125 | kHz | |
| Pulse duration | 100 | ns | ||
| Pilot laser power | 1 | 5 | mW | |
| Cable length | 5 | 10 | 15 | m |
| Beam diameter | 30 | 50 | µm | |
| Focal length | 145 | 145 | 145 | mm |
| Focus depth | 0.6 | 0.6 | 0.6 | mm |
| Scanning width | 10 | 100 | mm | |
| Scanning frequency | 10 | 300 | Hz | |
| Power supply | 240 | 240 | 240 | V |
| Max power consumption | 6000 | 6000 | 6000 | W |
| Cooling method | Air, tunnel | Air, tunnel | Air, tunnel | |
| Operating temperature range | 10 | 35 | °C | |
| Gun weight | 1 | 1 | 1 | kg |
| Module weight | 60 | 60 | 60 | kg |
