Specifications
- Pulsed laser source with an average output power of 900-1020 W
- High-efficiency pulsed laser cleaning without surface damage
- Adjustable processing width up to 100/200 mm
- Focal length – 300/600 mm
- Preinstalled modes and manual settings
- Air and tunnel cooling – no air connection required
- Maximum power consumption – 3.5 kW
- Gentle cleaning, suitable for precision products

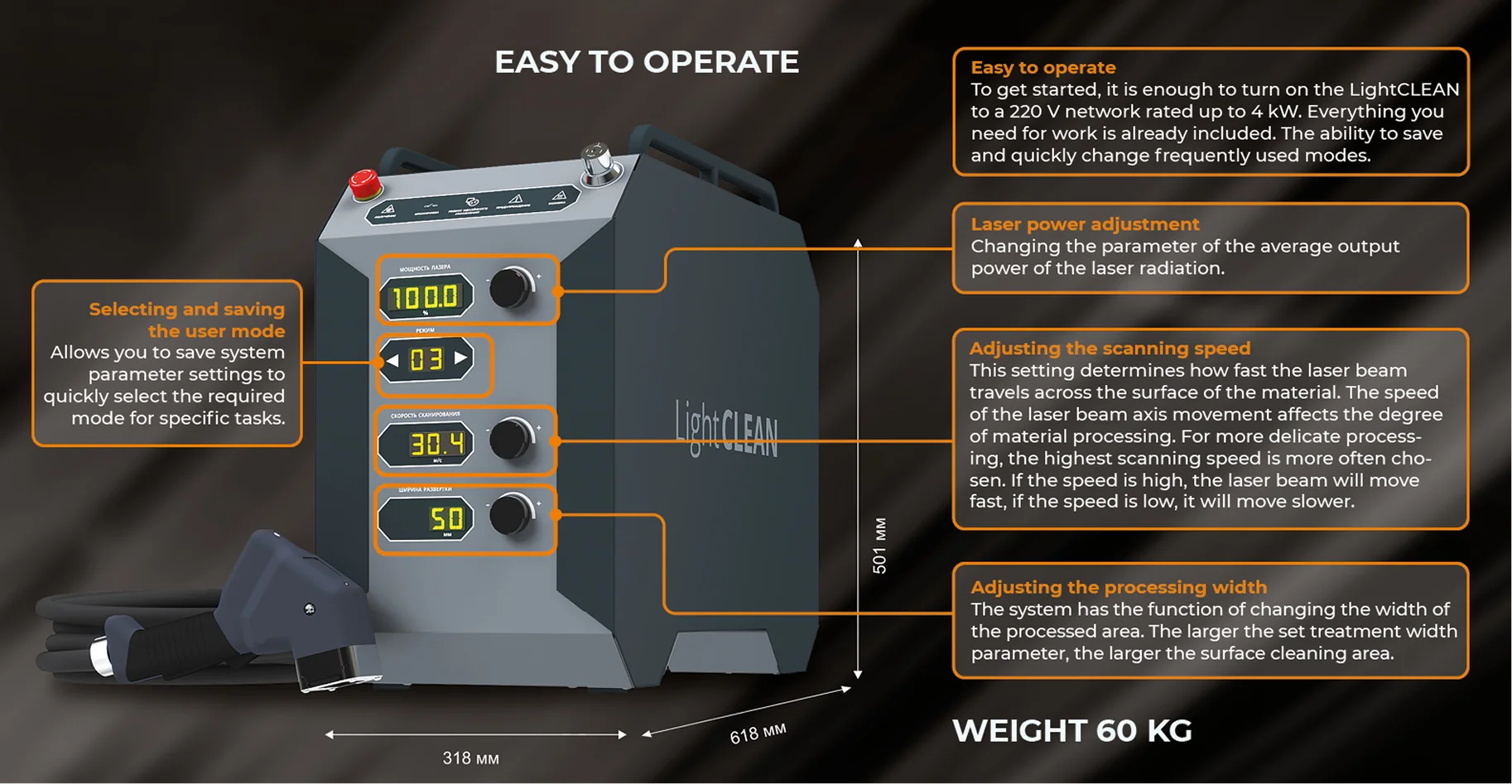

Dimensions and Control
Package Contents
Long-focus lens (for extended focal length)
5 protective glasses (consumable)
Operator protective goggles for laser radiation
Universal gun holder
CrossJet nozzle for more comfortable operator use

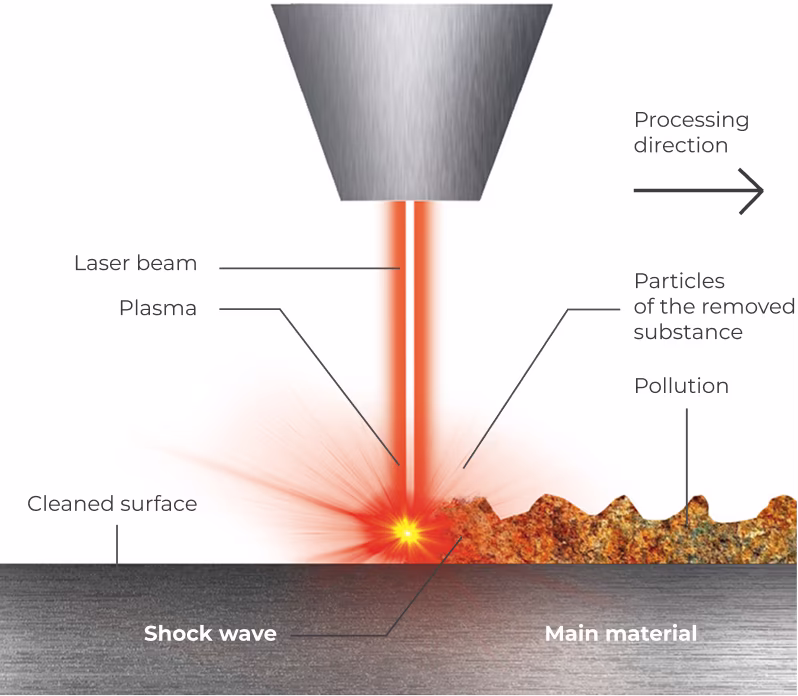

How does pulsed laser radiation remove contaminants?
Pulsed laser cleaning is a technological process in which laser radiation acts on a contamination layer, removing it completely or with minimal effect on the base material surface.
Contaminants are removed due to local evaporation of the surface layer. During evaporation, the non-metallic contamination layer is destroyed and removed from the metal surface by the pressure of high-temperature vapors. LightCLEAN integrates a unique high-power pulsed laser, allowing highly efficient removal of various surface contaminants. The built-in library of specially developed cleaning modes allows quick start without manually adjusting the parameters.
Comparison of LightCLEAN and Traditional Technologies
| Mechanical Cleaning (Abrasives) | Cryoblast | Jet Cleaning | Chemical Cleaning | Laser Cleaning LightCLEAN | |
| Direct consumables required |  |
|
|
|
 |
| Workspace requirements | |
|
 |
|
|
| Noise level | |
|
|
|
|
| Precision processing capability | |
|
|
|
|
Reasons to Buy LightCLEAN Laser Cleaning
Main Differences Between LightCLEAN V2 and LightCLEAN X
Main Technical Specifications of the LightCLEAN System
| LightCLEAN V2 | LightCLEAN X | |
| Laser operating mode | Pulsed | Pulsed |
| Power adjustment, % | 10—100 | 10—100 |
| Laser output power, Pmax, W | 1000 | 1000 |
| Output beam diameter, µm | 60—70 | 250 |
| Number of optical channels in the laser | 6 | 1 |
| Delivery fiber diameter, µm | 6 × 14 | 50 |
| Pulse duration, ns | 150 |
100—250 |
| Pulse energy, mJ | 1.5 |
7 |
| Pulse repetition rate, kHz | 25—125 |
130—140 |
| Total average output power, W | 900—1020 |
1000—1200 |
| Average output power per channel, W | 150—170 | 1000—1200 |
| Spectral line width, nm | Up to 4 | 5—6 |
| Cable length, m | 10; 15 | 10; 15 |
| Supply voltage, V | 210—240 | 210—240 |
| Maximum power consumption, W | 3500 | 3500 |
| Cooling method | Air | Air |
| Operating temperature range, °C | +10…+35 | +10…+35 |
| Control unit weight, kg | 60 | 60 |
Economic Benefits of LightCLEAN
| Sandblasting | LightCLEAN | |
| Cleaning cost, RUB/m² (direct costs) | 58 | 0.5 |
| Average productivity, m²/min | 5 | 0.5 |
| Savings, RUB/m² | 57.5 | |
| Adjusted savings, RUB/m² | 53 | |
| Average monthly savings (90,000 m²), RUB | 4,770,000 |

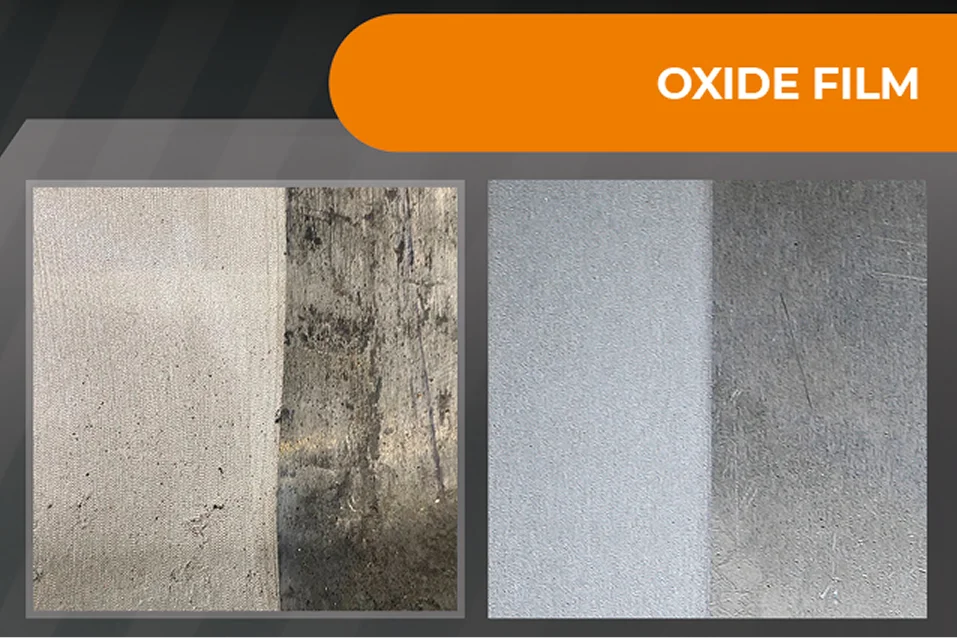

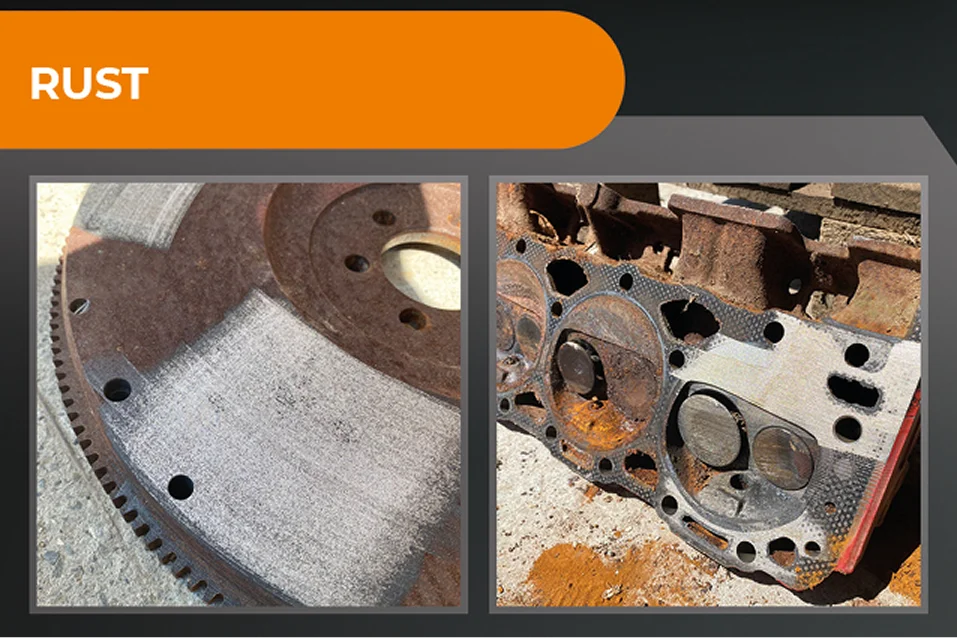

Applications of LightCLEAN
| Typical Tasks and Applications | Features | Type of Contaminants | Surface Types |
| Mold Cleaning | Non-damaging cleaning without heating the base | Rubber, plastic, grease | Stainless and low-carbon steel |
| Food Industry, Medicine | Non-damaging cleaning without heating the base | Polymerized oils, carbonized residues, burnt particles | Stainless steel, glass |
| Pre-/Post-Welding Cleaning | High cleaning productivity | Degreasing, dirt, rust, oxide films, primer residues, coatings, slag, burn marks, heat colors, etc. | All weldable metals |
| Pre-/Post-Welding Cleaning | Non-heating cleaning | Degreasing, dirt, rust, oxide films, primer residues, coatings, slag, burn marks, heat colors, etc. | All weldable metals |
| Mechanical Engineering | High cleaning productivity | Primer, paint, rust, dirt, oil, etc. | Metals, plastic, glass |
| Mechanical Engineering | Non-damaging cleaning without heating the base | Primer, paint, rust, dirt, oil, etc. | Metals, plastic, glass |
| Mechanical Engineering | Surface structuring | Primer, paint, rust, dirt, oil, etc. | Metals, plastic, glass |
| Utilities / Industrial Cleaning Companies | Non-damaging cleaning without heating the base | Paint, dirt, rust, coating residues | Stone, metals, glass |
| Utilities / Industrial Cleaning Companies | Surface structuring | Paint, dirt, rust, coating residues | Stone, metals, glass |
| Metal Rolling, Metalworking, Job Shops | High productivity | Rust, scale | Metals |
| Metal Rolling, Metalworking, Job Shops | Non-damaging cleaning without heating the base | Rust, scale | Metals |
| Metal Rolling, Metalworking, Job Shops | Surface structuring | Rust, scale | Metals |
