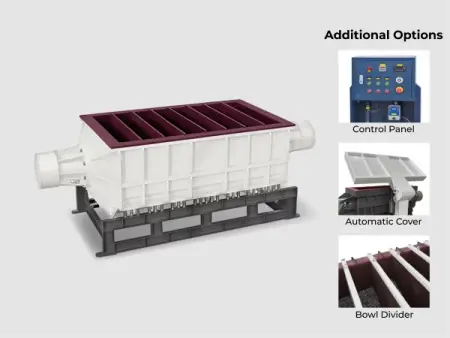

IMS-TB550 Vibratory Finishing Tub

Tub Vibratory Finishing Machine

A Tub Vibratory Finishing Machine is high-tech equipment designed for grinding, polishing, and deburring parts of various shapes, sizes, and materials. Thanks to its trough-shaped design, it is ideally suited for processing both large workpieces and batches of medium-weight components.

Purpose and Applications

Trough vibratory finishers are used in a wide range of industries, including metalworking, jewelry manufacturing, medical, and automotive. Its primary functions are:

• Deburring and removing imperfections.
• Final polishing of parts to a mirror finish.
• Cleaning scale, rust, and other industrial contaminants from components.
• Achieving perfect surface roughness to improve both aesthetic and functional properties.

Design Features and Standard Configuration

Tub Shape:
The trough design allows for the processing of parts of various sizes and shapes. This makes the TB series a universal tool for handling large and heavy items.

Dual Motors:
Models in the TB series are equipped with two motors, positioned on the sides of the trough. This ensures even distribution of vibrations across the entire working surface, guaranteeing high-quality finishing.

Wear-Resistant Polyurethane Lining:
The working surface of the trough is lined with durable polyurethane, which protects the equipment from wear and mechanical damage. This lining ensures a service life of over 10 years, even under intensive use.

Control Panel (Included as Standard):

The modern control panel allows for precise adjustment of processing parameters to achieve optimal results. The standard configuration includes:

• Water Supply System: Enables wet processing, improving polish quality and protecting parts from overheating.
• Dosing Pump: Controls the supply of compound for precise processing and economical use of consumables.
• Frequency Control: Allows adjustment of vibration intensity for different types of finishing.
• Timer: Sets precise operating time, automatically ending the cycle.
• Start/Stop and Emergency Stop Buttons: Ensure operational convenience and safety.

Advantages of the Tub Vibratory Finisher

Versatility: Suitable for parts of all sizes, from large to small.

Durability: The polyurethane lining and robust construction materials guarantee a long service life.

Ease of Operation: The control panel makes it easy to adapt the equipment to any task.

Finishing Quality: The trough shape ensures uniform vibrational impact on all parts, improving their surface.

Application Flexibility: The ability to use different types of abrasive media to achieve various effects.

A trough vibratory finisher is the optimal choice for companies requiring reliable equipment to process a wide range of parts. Combining high productivity, durability, and user-friendly controls, it will become an indispensable element of your production process.

Additional Options for the Trough Vibratory Finishing Machine

Additional options for the trough vibratory finisher expand its functionality, enhance operational convenience, and adapt the equipment to specific production tasks. Key options include:

1. Automatic Soundproofing Cover

The automatic soundproofing lid is designed to reduce the noise level generated by the equipment's vibration during part processing.

Features:

• Effective Sound Insulation: Creates comfortable working conditions for personnel, especially in enclosed production areas.
• Automatic Operation: The lid opens and closes automatically, simplifying access to the work area.
• Durable Material: The lid is made of wear-resistant and sound-absorbing materials, ensuring a long service life.

Benefits:

• Significant noise reduction.
• Operational convenience through automation.
• Increased safety by protecting against dust and fine particles.

2. Control Panel

The control panel is a key element for precise control of processing parameters. It allows the equipment to be configured for optimal results depending on the type of parts being processed.

Features:

• Water Supply System: Automatic humidification for improved finishing quality.
• Dosing Pump: Precise compound supply to optimize material consumption.
• Vibration Frequency Adjustment: Configuring the intensity for various tasks (polishing, grinding, cleaning).
• Timer: Automatic process completion after a set time.
• Start/Stop and Emergency Stop Buttons: Convenient operation and safe use.

3. Polyurethane Bowl Dividers

Polyurethane dividers are designed to create multiple compartments within the trough bowl. This allows for the simultaneous processing of different part types or the use of different media in a single work cycle.

Features:

• Application Flexibility: Dividers can be easily installed or removed based on current tasks.
• Durable Material: Made from high-quality polyurethane, resistant to wear and abrasive media.
• Customizable Setup: Ability to divide the bowl into the required number of sections for optimal use of the work area.

Benefits:

• Saves time by processing several batches of parts simultaneously.
• Convenience when working with different types of abrasive media.
• Increases the equipment's versatility.
