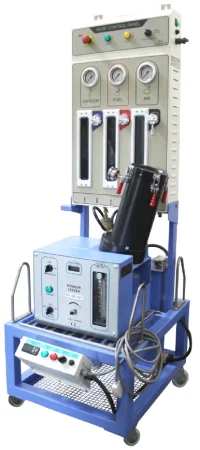

The HIPOJET system is a compact high-velocity thermal spraying system. The control unit is equipped with easy-to-read process gas flow meters used for manual adjustment, presetting, and monitoring of process gas and air parameters during the spraying process. The control unit is also equipped with pressure gauges for process gas pressure monitoring. The compact panel allows wall mounting.
Unit Features
- Complete isolation of electrical equipment from the gas section.
- When using a HYBRID water-cooled nozzle with a high-velocity oxy-fuel spray gun, the combustible gas supply can be shut off depending on the coolant flow rate. Coolant flow shutoff requires the use of an external JAM-BOX (HY-2100) module.
- Continuous air purging of the electrical compartment prevents the accumulation of hazardous gases.
Technical specifications
| Combustible Gases | Propane, Hydrogen, Propylene, Methane |
| Carrier Gas | Nitrogen |
| Sprayable Powders | Metallic, Carbides, Metal-Ceramics |
| Guns | HIPOJET 2700/HIPOJET 2700A |
| Standard Package |
|
HIPOJET 2700 Spray Gun
The special chamber design ensures high thermal efficiency and high particle velocities of the sprayed material, resulting in dense, low-oxide coatings. The versatile gun body design allows for quick maintenance.
HIPOJET 2700A Spray Gun
This spray gun is designed for use in automated high-speed spray systems. When used, the system is equipped with a remote gun ignition module, allowing for automatic spraying.
Coating Properties
| Spray Material | WC-10Co-4Cr |
| Coating Thickness | 250 µm |
| Average Porosity | 2.57% |
| Average Microhardness | 1026 VHM |
Gallery of Completed Projects
Additional Equipment
A spray system typically includes the primary coating application equipment, as well as all necessary peripheral components, such as a noise reduction booth, an industrial robot, positioners, a filter and ventilation unit, etc. The final configuration of each spray system depends on the specific process task and customer requirements. Our company has extensive experience in designing and implementing turnkey industrial spray systems. We operate our own production facility covering over 5,500 square meters, several design bureaus, and an automated control system department. For over 10 years, we have been developing comprehensive thermal spray systems, providing customers with the best solutions that meet the most modern industrial production requirements.
System Components
