Innovative Direct Cooling
No metal deformation or heating
Most compact laser machine
Best solution for aluminum and stainless steel
Penetration depth
up to 6 mm
Convenient mobile app

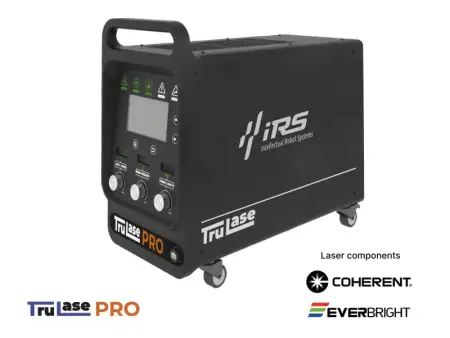

The new series of professional handheld devices Trulase — a synergy of performance, compactness, ergonomics, and affordable cost.
At the heart of the device is a unique single-mode laser, built on advanced optical components from Coherent® and Everbright Photonics®.
Top-tier optical components and advanced cooling technologies give Trulase exceptional welding stability and reliability. Trulase effortlessly welds highly reflective materials: aluminum, galvanized steel, brass.
TruLase Capabilities
Penetration Depth
Welding Modes
Pulsed
Single Pulse
Continuous
Pulse Series
Materials Welded by TruLase
Stainless Steel
Low Carbon Steel
Nickel Alloys
Aluminum Alloys
Copper Alloys
Titanium Alloys
Galvanized Steel
Carbon Steel
Advantages of TruLase Compared to Other Welding Methods
Up to 4x faster than TIG, and up to 1.5x faster than MIG welding
No edge preparation is required. No need to wait for the weld to cool between passes. Laser welding has approximately 10 times smaller heat-affected zone, minimizing deformation and warping. The laser welding process is non-contact. No flux or electrode particles enter the molten metal. This ensures a cleaner and more precise weld, which almost does not require post-processing or cleaning.
Penetration Thickness up to 12 mm
Laser welding is ideal for stainless steel, galvanized steel, low-carbon steel, and aluminum. With a single pass, TruLase Pro can weld sheets up to 6 mm thick, and with double-sided welding up to 12 mm. This is a new level for handheld laser welding. If gap welding is required, a filler wire feeder module can be connected.
Weld Width Increase up to 5 mm
TruLase provides easy control to increase the weld width up to 5 mm and adjust the oscillation frequency of the laser beam. This feature improves weld appearance and enables welding parts with poor edge alignment.
Compactness and Ease of Use
TruLase is equipped with a compact air-liquid Direct Cooling system, eliminating the need for bulky chillers. The welding gun is compact and ergonomic, lightweight, and allows operators to weld high-quality seams throughout the work shift with safe laser activation. The system is simple, and the intuitive connection allows both beginners and experienced welders to start quickly.
One-Pass Welding
Pre-set and user-defined modes optimize welding of materials with different thicknesses. Pulsed modes are available to expand welding possibilities. Thanks to the high laser power density, parts can be fully welded in a single pass.
Safety System
TruLase is equipped with essential safety sensors. The welding gun has a built-in sensor that checks the contact between the nozzle and the welded part. In case of disconnection, the gun will stop the laser beam. External interlocks can also be connected.
Welding Gun
- Weight <600 g
- Impact-resistant ABS plastic
- Cartridge replacement of protective lenses
- Protective lens condition monitoring
- Workpiece contact sensor
- Ergonomic handle design
- Single-position trigger
- Focus adjustment (0…+6 mm)
- Threadless nozzle with precise slot positioning
- Wire holder included
- Oscillation frequency: 0…200 Hz
- Oscillation width: 0…5 mm
- Hose package 5 m (optional 10 m)
Cooling System
- Dual-circuit liquid cooling system using patented Direct Cooling technology – allows 24/7 operation without stops or overheating
- Coolant does not require refilling
- Fan unit with adjustable rotation speed
- Air filter at the intake
Control System
- Integrated control system for laser, welding gun, and cooling system
- Parameter control from the front panel
- Pre-set welding modes
- User-defined modes can be saved
User Interface
System monitoring and precise adjustment of welding modes can also be done via mobile phone.
Additional adjustable parameters:
- Delay of shielding gas ON/OFF
- Laser power ramp-up/down time
- Pulse duration (for single pulse mode)
- Interval between pulses (for pulse series mode)
- Pulse repetition frequency*
- Pulse repetition frequency*
- Pulse duty cycle*
*for pulsed mode
Connection and Startup
Simple installation and connection
- 220V, 20 A, 1 phase – main unit
- 220V, 8 A, 1 phase – wire feeder
- 3x4 cable (3 cores, 4 mm²) from distribution panel to socket
- Standard gas cylinder (Argon, Nitrogen, mixture) + 6 atm regulator
- 12 mm diameter pneumatic hose
Package Contents
| No. | Item Name | Quantity |
|---|---|---|
| 1 | TruLase PRO Welding Machine | 1 pc. |
| 2 | Welding Gun | 1 pc. |
| 3 | Integrated hose package for welding gun | 1 pc., 5 m |
| 4 | Wire Feeder | 1 pc., 3 m |
| 5 | Power Cable (connector to the machine, without socket) | 1 pc., 10 m |
| 6 | Interface Cable for Wire Feeder | 1 pc. |
| 7 | Safety Clamp | 1 pc., 10 m |
| 8 | Wire Bracket | 1 pc. |
| 9 | Protective Lenses | 5 pcs. |
| 10 | Nozzle Tips | 3 pcs. |
| 11 | Safety Glasses | 1 pc. |
| 12 | Welding Gloves | 1 pc. |
