Innovative Direct Cooling System
No Metal Deformation or Overheating
The Most Compact Laser Welding Unit
Best Solution for Aluminum and Stainless Steel
Penetration Depth
up to 4 mm
Convenient Mobile Application
The new line of professional handheld welding units Trulase is a synergy of performance, compact size, ergonomics and affordability.
The core of the system is a unique single-mode laser built on advanced optical components from Coherent® and Everbright Photonics®.
Premium optical components and advanced cooling technologies provide Trulase with exceptional welding stability and reliability. Trulase easily welds highly reflective materials such as aluminum, galvanized steel, and brass.
TruLase Capabilities
Penetration Depth
Welding Modes
Pulsed
Single Pulse
Continuous
Pulse Series

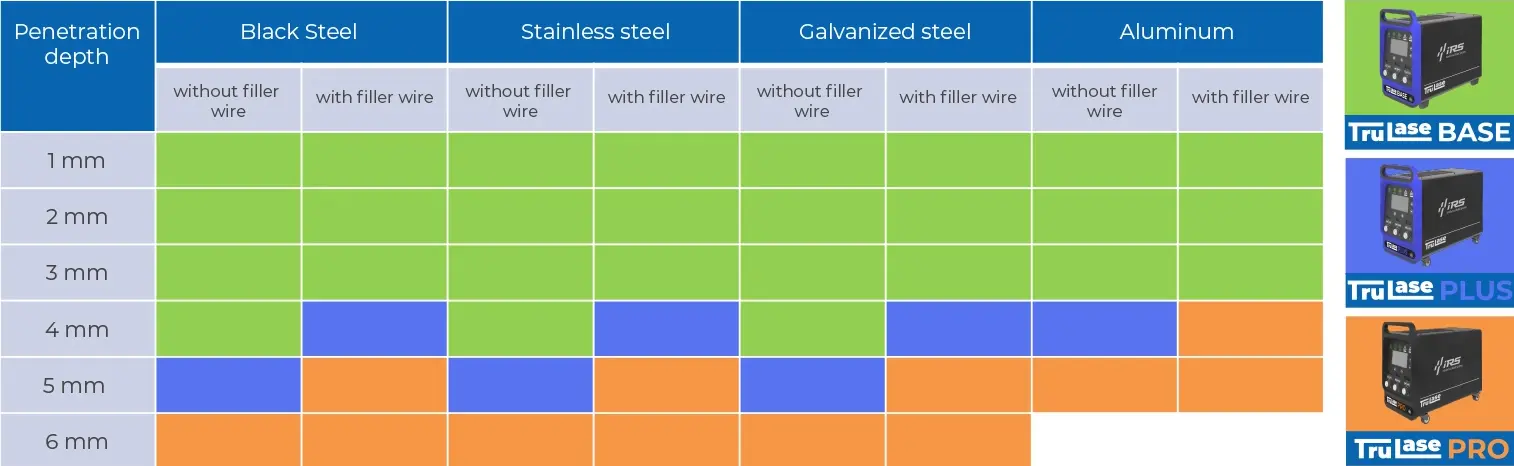

Materials Welded by TruLase
Stainless Steel
Low-Carbon Steels
Nickel Alloys
Aluminum Alloys
Copper Alloys
Titanium Alloys
Galvanized Steel
Carbon Steels
Advantages of TruLase Compared to Other Welding Methods
Up to 4x faster than TIG and up to 1.5x faster than MIG welding
No edge preparation is required. There is no need to wait for the weld to cool between passes. Laser welding has approximately 10 times smaller heat-affected zone, which minimizes deformation and warping. The laser welding process is non-contact, so no flux or electrode particles enter the molten pool. This ensures a cleaner and neater weld seam that requires little to no post-processing.
Penetration depth up to 8 mm
Laser welding is ideal for stainless steel, galvanized steel, low-carbon steel, and aluminum. With a single-sided pass, the TruLase Base can weld sheets up to 4 mm thick, and up to 8 mm with a double-sided pass. When welding with a gap, a wire feeding module can be connected.
Weld width increase up to 5 mm
TruLase allows easy adjustment of weld bead width up to 5 mm and selection of oscillation frequency of the output beam. This feature improves visual appearance of the weld and enables welding of parts with poor edge fit-up.
Compact and easy to operate
TruLase is equipped with a compact air-liquid cooling system (Direct Cooling), eliminating the need for bulky chillers. The welding gun is compact and ergonomic, lightweight, and allows operators to weld high-quality seams throughout the work shift with safe laser activation. The intuitive system and simple connections make it suitable for both beginners and experienced welders.
Single-pass welding
Preset and user-defined modes optimize welding for materials of different thicknesses; pulse modes are available to expand welding capabilities. Due to the high laser power density, penetration is achieved in a single pass.
Safety system
TruLase is equipped with mandatory safety sensors. The gun contains a sensor that detects contact between the nozzle and the workpiece. If the contact is interrupted, the gun will stop laser output. External interlocks can also be connected.

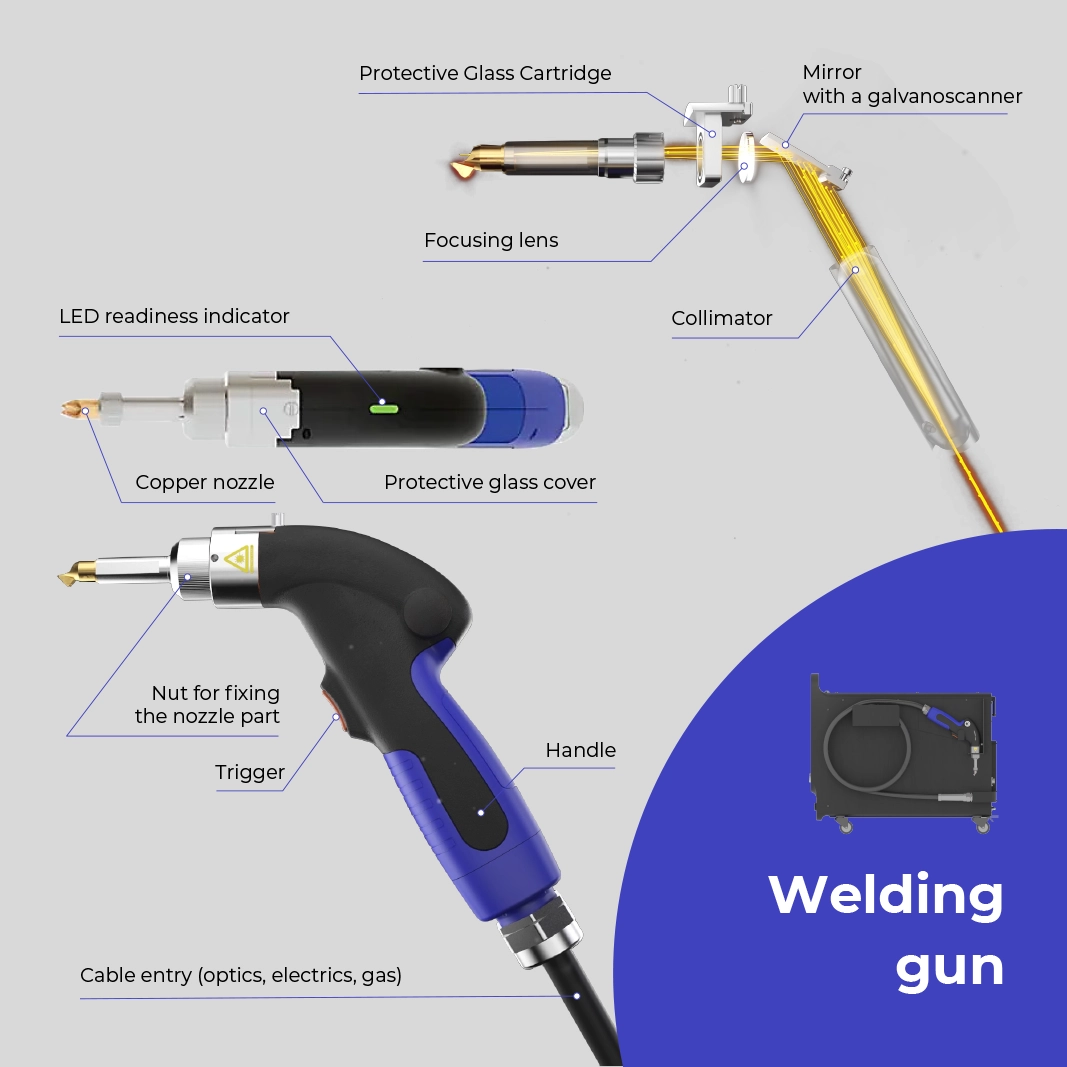

Welding Gun
- Weight <600 g
- Impact-resistant ABS plastic
- Cartridge-style protective lens replacement
- Protective lens condition monitoring
- Workpiece contact sensor
- Ergonomic handle design
- Single-position trigger
- Focus adjustment (0…+6 mm)
- Threadless nozzle with keyed alignment
- Wire bracket included
- Oscillation frequency: 0…200 Hz
- Oscillation width: 0…5 mm
- Hose package 5 m (optional 10 m)
Cooling System
- Dual-circuit liquid cooling system based on patented Direct Cooling technology – 24/7 continuous operation without overheating
- No coolant refilling required
- Fan unit with adjustable rotation speed
- Air filter at system intake
Control System
- Integrated control of laser, welding gun, and cooling system
- Parameter adjustment from the front panel
- Preset welding modes
- User mode storage capability

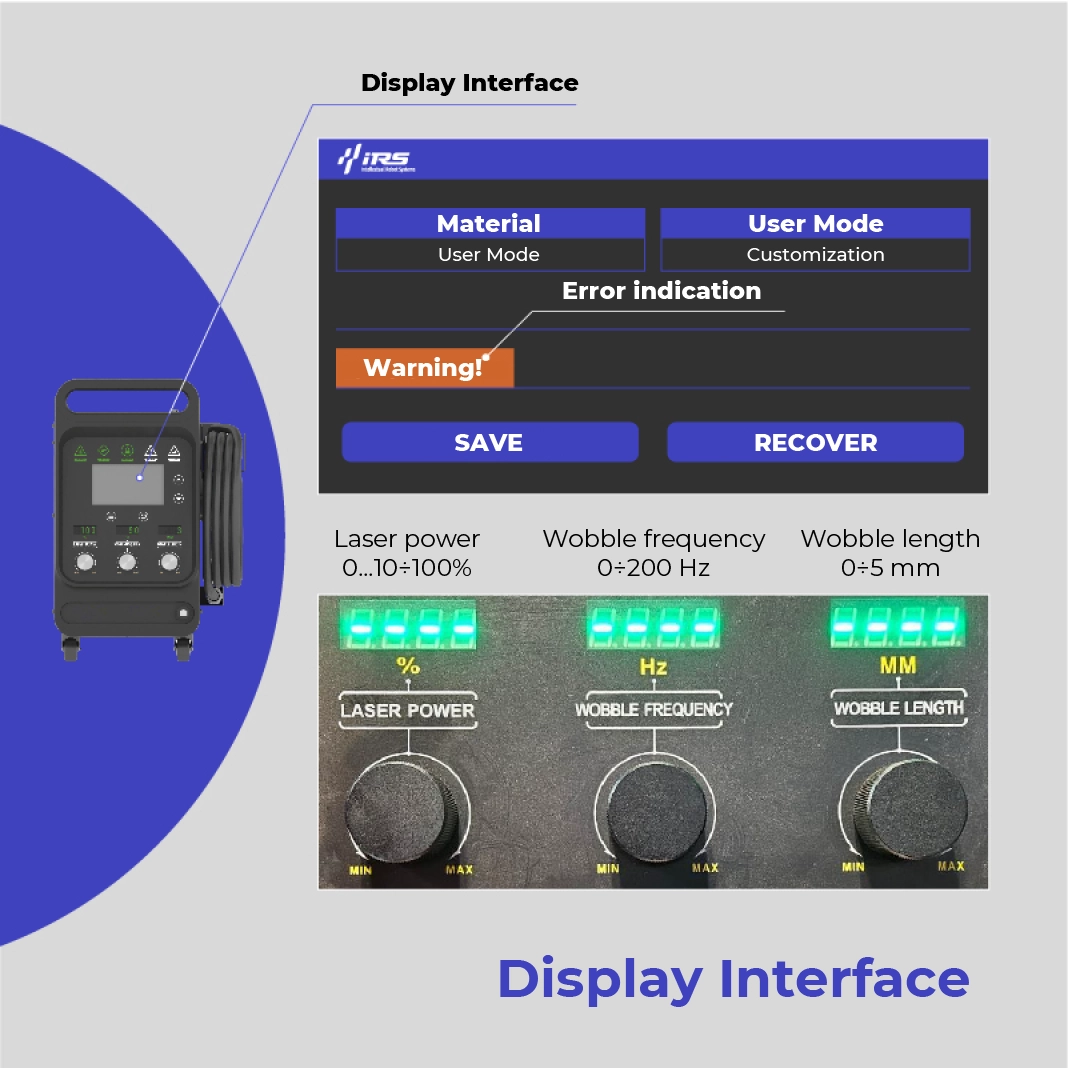

User Interface
System monitoring and precise welding parameter adjustment can also be performed using a smartphone.
Additional adjustable parameters:
- Gas flow on/off delay
- Laser power ramp up/down time
- Pulsing duration (single pulse mode)
- Pulse interval (pulse burst mode)
- Pulse repetition frequency*
- Pulse repetition frequency*
- Pulse duty cycle*
*for pulsed mode
Installation and Start-Up
Simple installation and setup
- 220 V, 20 A, 1 phase – main unit
- 220 V, 8 A, 1 phase – wire feeder
- 3x4 mm² power cable from panel to socket
- Standard gas cylinder (Argon, Nitrogen, or mix) + 6 atm regulator
- 12 mm pneumatic hose
Package Contents
| № | Name | Quantity |
|---|---|---|
| 1 | TruLase BASE Welder | 1 pc. |
| 2 | Welding Gun | 1 pc. |
| 3 | Integrated hose package for welding gun | 1 pc., 5 m |
| 4 | Wire Feeder | 1 pc., 3 m |
| 5 | Power cable (with machine connector, without plug) | 1 pc., 10 m |
| 6 | Interface cable for wire feeder | 1 pc. |
| 7 | Ground clamp | 1 pc., 10 m |
| 8 | Wire bracket | 1 pc. |
| 9 | Protective lenses | 5 pcs. |
| 10 | Nozzle tips | 3 pcs. |
| 11 | Protective goggles | 1 pc. |
| 12 | Welding gloves | 1 pair |
Sign Up for a TruLase Test DriveWe will demonstrate the system and help select the optimal welding technology for your parts in our demo center or online. |
Book a Test Drive
|
Payment Terms and Methods
We offer flexible payment terms tailored to the specifics of each transaction to ensure convenience and reliability of cooperation.
Payment is made by bank transfer based on the issued invoice.
For equipment in stock
If equipment installation is required:
90% — advance payment upon contract signing.
10% — upon equipment readiness for shipment from the Moscow warehouse.
If equipment installation is not required:
100% — advance payment upon contract signing.
Note: Individual payment terms are possible. We are always open for discussion!
For custom equipment orders
If equipment installation is required:
50% — advance payment upon contract signing, guaranteeing production reservation for your order.
40% — upon equipment readiness for shipment from the Moscow warehouse.
10% — after successful equipment commissioning at your production facility.
If equipment installation is not required:
50% — advance payment upon contract signing, guaranteeing production reservation for your order.
50% — upon equipment readiness for shipment from the Moscow warehouse.
Note: Individual payment terms are possible depending on equipment type and delivery timelines. We are always open for discussion!
