Handheld Laser Welding, Cutting and Cleaning System VPG LiteWELD XC Plus

LiteWELD XC PLUS — Laser Welding with New 2000W Multimode Laser Source

• New extended welding capabilities compared to the previous LiteWELD XC generation
• Includes cleaning and cutting functions
• New features:
• Dynamic wobble for improved weld quality
• Increased penetration depth for steels up to 8 mm
• High-quality welding of AMg and AMc aluminum alloys up to 7 mm thick
• Full penetration welding of copper, brass, and bronze up to 2 mm thick
• New control board — welding automation has become even easier!

Dynamic Wobble — Unique Functionality of LiteWELD XC PLUS

Standard (linear) wobble — the beam lingers at the edges during direction changes. As a result, with a set desired weld width and oscillation frequency, the metal at the edges may penetrate more, while the center may experience incomplete penetration, giving the weld a “tooth-like” appearance.

Dynamic wobble — beam oscillations vary in frequency and amplitude (see below). Resulting in more stable penetration and better melting of the filler wire.

Dynamic Wobble — Advantages

• Increased weld strength: more uniform penetration profile and deeper weld penetration
• Reduced porosity





• Ability to increase wire feed speed (i.e., faster welding)

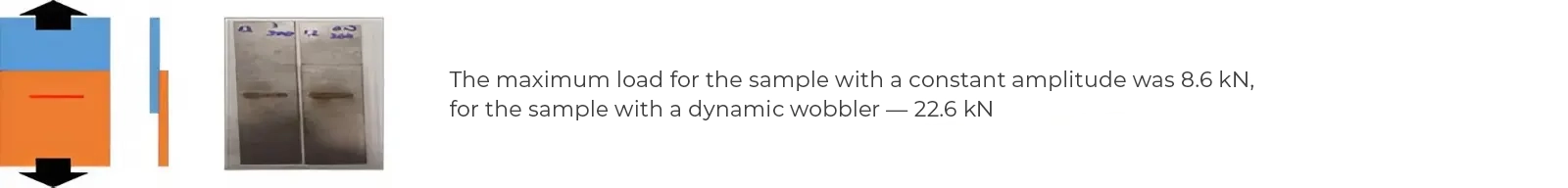

• Improved strength of lap joints

Laser Cleaning Function

The cleaning function prepares weld edges before welding, reducing porosity caused by surface contamination. It also removes soot and discoloration from the weld. Both welding and cleaning are performed on the same equipment without lengthy reconfiguration, using preset modes. This improves product appearance and reduces post-processing costs.

Laser Cutting Function

Using LiteWELD instead of a traditional angle grinder for metal cutting provides several benefits. Simple mode switching saves time and reduces the risk of equipment damage caused by debris hitting the fiber. This makes cutting more efficient and reliable, avoiding potential damage from nozzle changes.

Materials Welded by VPG LiteWELD XC PLUS

Stainless Steel

Single-sided welding up to 8 mm
Double-sided welding up to 16 mm

Low Carbon Steels

Single-sided welding up to 8 mm
Double-sided welding up to 16 mm

Nickel Alloys

Single-sided welding up to 7 mm
Double-sided welding up to 14 mm

Aluminum Alloys

Single-sided welding up to 7 mm
Double-sided welding up to 14 mm

Copper Alloys

Single-sided welding up to 2 mm
Double-sided welding up to 3 mm

Titanium Alloys

Single-sided welding up to 6 mm
Double-sided welding up to 12 mm

Galvanized Steel

Single-sided welding up to 7 mm
Double-sided welding up to 14 mm

Carbon Steels

Single-sided welding up to 7 mm
Double-sided welding up to 14 mm

Value Kit

Kit Contents	Standard Kit	IRS Kit
Base unit with welding gun
Laser safety glasses
Set of replacement protective lenses
Set of replacement nozzles for different joints
Wire feeding mechanism
Wire feeding bracket
Accessory kit for connections
Free delivery and training

Value-Added Kit

Standard Kit

1. Base unit with air cooling
2. Laser safety glasses
3. Set of replacement protective lenses
4. Set of replacement nozzles

Wire Feeding Mechanism

Fully compatible with VPG LiteWeld 2000. Wire feeding is automatic and controlled by the laser welding machine. Two- or four-stroke wire feeding modes. Feed speed range: 0–800 cm/min. Supports wire diameters of 0.8 mm, 1.0 mm, 1.2 mm, and 1.6 mm.

Wire Feeding Bracket

Compatible with the feeding mechanism and its channel; can also be used with various filler wire tips. Compact and ergonomic, enabling welding in hard-to-reach areas.

Accessory Kit for Connections

Complete set of wires, fittings, and accessories for connecting the laser welding machine and wire feeder. Includes rollers for different wire diameters and replacement welding tips.

Free Delivery and Training

Delivery and detailed training on the equipment + access to a complete electronic knowledge base.

VPG LiteWELD XC PLUS vs. Traditional Welding

Aluminum Welding Example
