LiteWELD XR — High-Performance Single-Mode 1500W Laser
Proven and user-loved LiteWELD welding capabilities
XC cleaning modes functionality, highly valued for high-quality aluminum and stainless steel welding
Ability to cut metal up to 6 mm thick without changing the gun, simply by switching modes
New capabilities
High-quality, stable, and fast full-penetration welding of AMg and AMc aluminum alloys up to 6.5 mm
Unique built-in capabilities for full-penetration welding of titanium and nickel alloys — up to 5 mm
Stable and predictable copper welding with library modes — penetration depth up to 3 mm
LiteWELD XR cleans edges before welding and weld seams after:
- Special high-power pulsed mode with high pulse frequency evaporates any type of contamination
- Precise control and parameter settings prevent damage to the surface layer of the cleaned metal
- Evaporated particles are blown away by shielding gas through the nozzle – recommended to use with an external exhaust
- Clean only the working area by adjusting the cleaning zone width
- Cleaning mode with minimal heat input – no post-processing required; the workpiece is ready for the next production stage
Fast and High-Quality Welding of Thick Materials
Full-Penetration Welding of 6mm Stainless Steel Butt Joint in One Pass
Weld Seam Cross-Section – Minimal Heat Input and Maximum Welding Quality
Laser Cleaning Function
The cleaning function allows removing weld edges before welding, reducing porosity caused by metal contamination, and cleaning weld seams from soot and heat colors. Both processes (welding and cleaning) are performed on the same equipment without lengthy reconfiguration using pre-set modes, improving the product appearance and reducing additional processing costs.
Laser Cutting Function
To cut metal, the operator does not need to handle an angle grinder; simply switch the LiteWELD to the required mode. This saves up to 30% of the time and eliminates the risk of device damage due to debris entering the fiber, which is likely when changing the gun.
Value Package
| Package Contents | Standard Configuration | IRS Package |
| Main Unit with Welding Gun |  |
|
| Laser Safety Glasses | |
|
| Set of Replacement Safety Lenses | |
|
| Set of Replacement Nozzles for Various Joints | |
|
| Wire Feeding Mechanism |  |
|
| Wire Feeding Bracket | |
|
| Connection Accessories | |
|
| Free Delivery and Instruction | |
|
Materials Welded by LiteWELD 1500
Stainless Steel
Single-pass welding up to 7 mm
Double-pass welding up to 14 mm
Low Carbon Steel
Single-pass welding up to 7 mm
Double-pass welding up to 14 mm
Nickel Alloys
Single-pass welding up to 5 mm
Double-pass welding up to 10 mm
Aluminum Alloys
Single-pass welding up to 6 mm
Double-pass welding up to 12 mm
Copper Alloys
Single-pass welding up to 2 mm
Double-pass welding up to 3 mm
Titanium Alloys
Single-pass welding up to 5 mm
Double-pass welding up to 10 mm
Galvanized Steel
Single-pass welding up to 6 mm
Double-pass welding up to 12 mm
Carbon Steel
Single-pass welding up to 7 mm
Double-pass welding up to 14 mm
Value Package
Standard Package
1. Base unit with air cooling
2. Laser safety glasses
3. Set of replacement safety lenses
4. Set of replacement nozzles
Wire Feeding Mechanism
The wire feeding mechanism is fully compatible with LiteWELD XR Lite. Wire is fed automatically and controlled by the laser welding system. Feeding mode: 2-stroke / 4-stroke. Wire feed speed range: 0–800 cm/min. Compatible with welding wire diameters of 0.8 mm, 1.0 mm, 1.2 mm, and 1.6 mm.
Wire Feeding Bracket
Compatible with the feeding mechanism and its channel, and can be used with various types of wire tips. The bracket is compact and ergonomic, enabling welding in hard-to-reach areas.
Connection Accessories Kit
Complete set of wires, fittings, and accessories for connecting the laser welding system and wire feeding mechanism. Includes rollers for feeding wires of various diameters and replacement welding tips.
Free Delivery and Training
Delivery and detailed training on system operation, along with a complete electronic knowledge base.

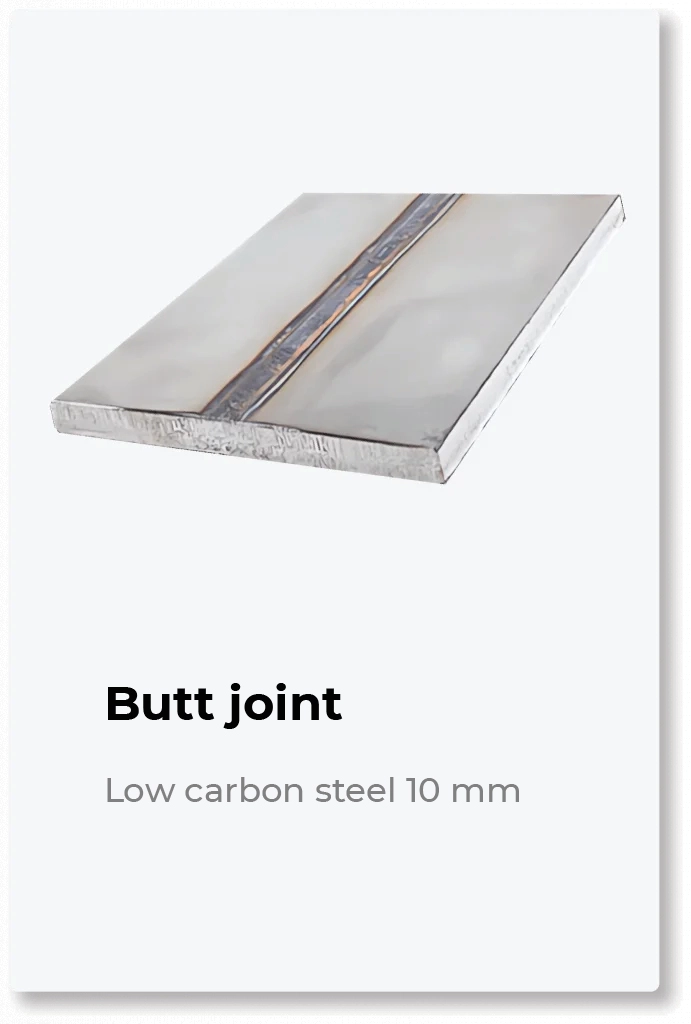

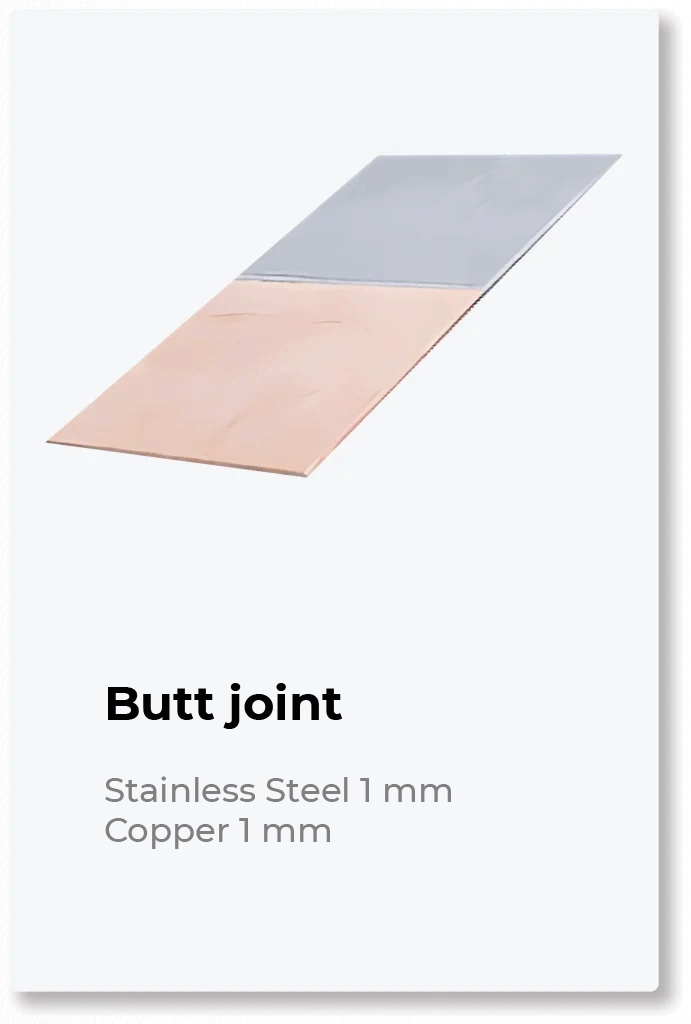

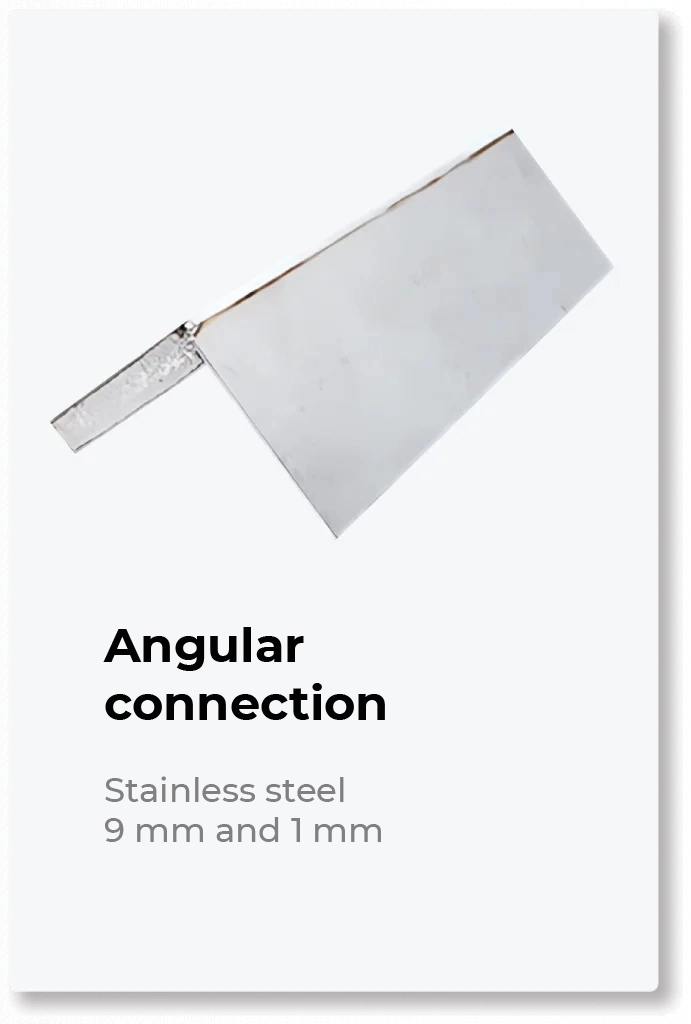

Types of Joints Welded by LiteWELD 1500

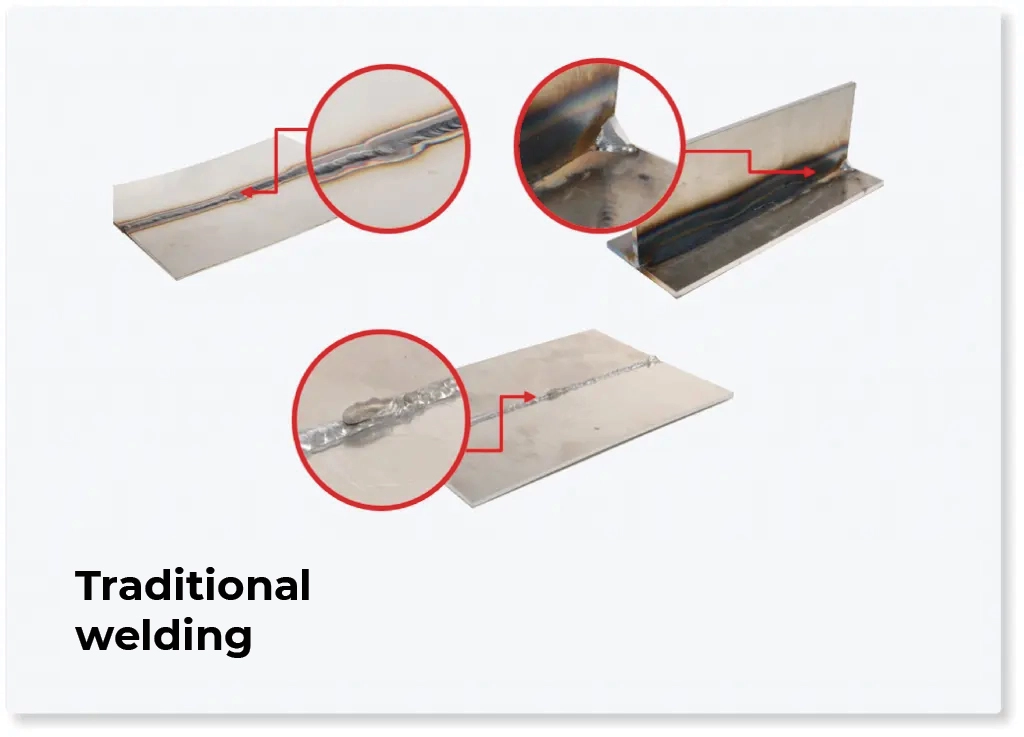

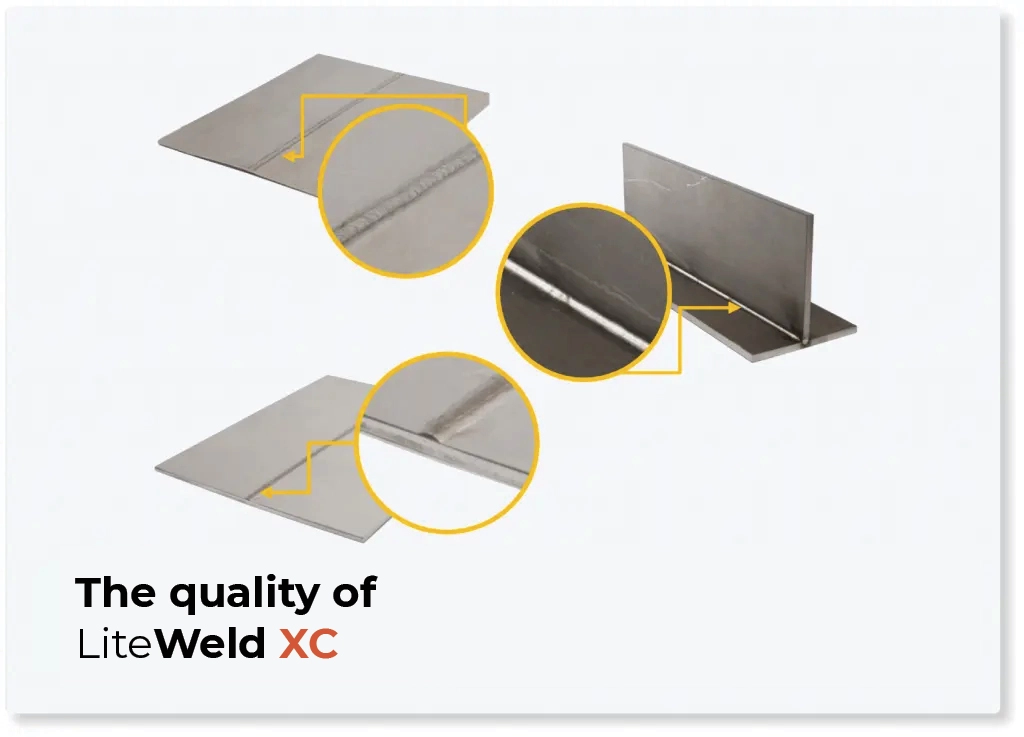

Comparison of LiteWELD 1500 and Traditional Welding

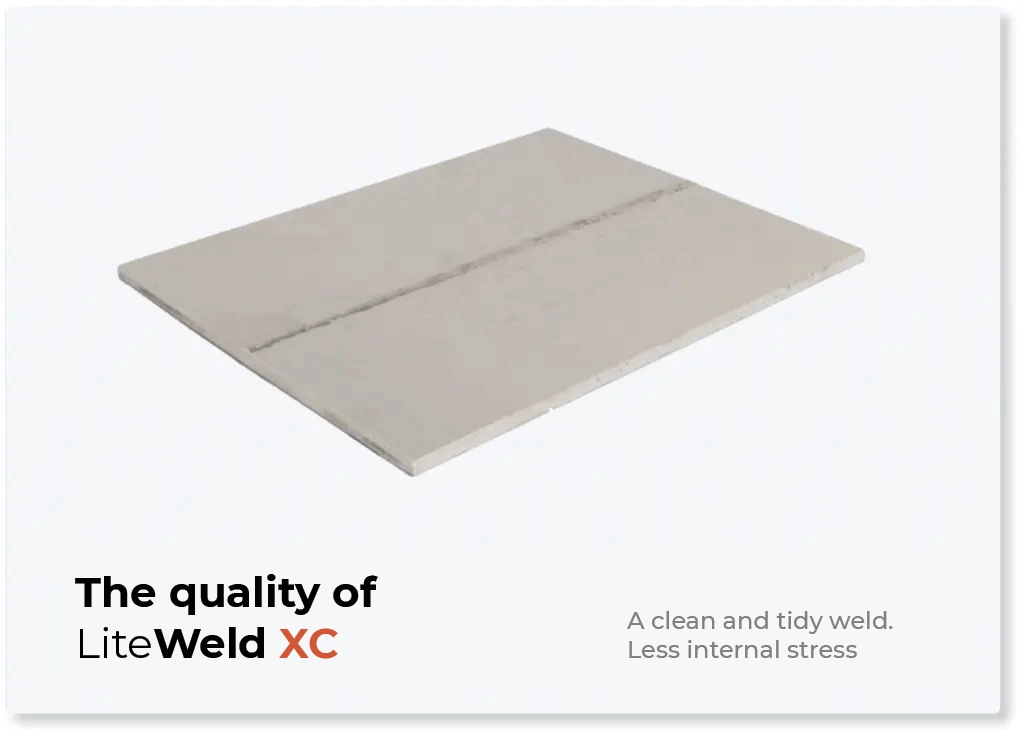

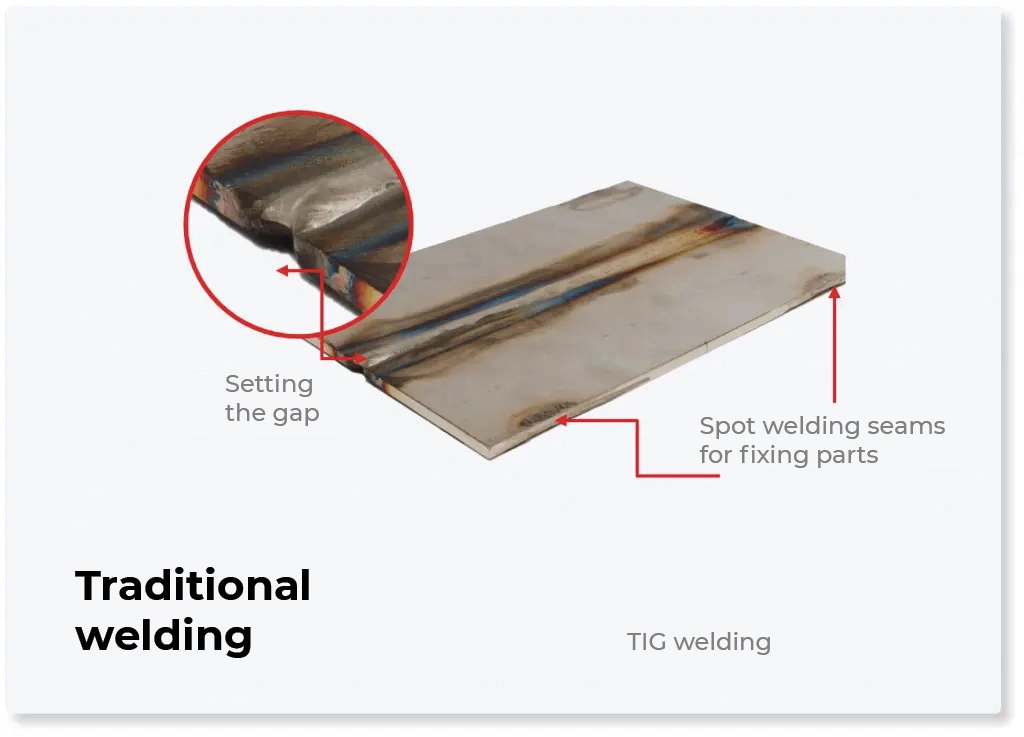

Example of Aluminum Welding (3 mm)
Advantages of Laser Welding
| Characteristic | Traditional Welding Technologies | LiteWELD Technology |
| Speed | Average | Up to 4 times faster than TIG, MAG, and MMA |
| Quality | Depends on welder experience | Consistently high-quality results |
| Learning Curve | Multi-step process | Consistently high results |
| Material Flexibility | Limited, requires reconfiguration | Wide range of materials without reconfiguration |
| Distortion and Warping | High | Minimal |
| Heat-Affected Zone | Large | Small |
| Oscillating Beam Welding | Not available | Available — weld width up to 5 mm |
