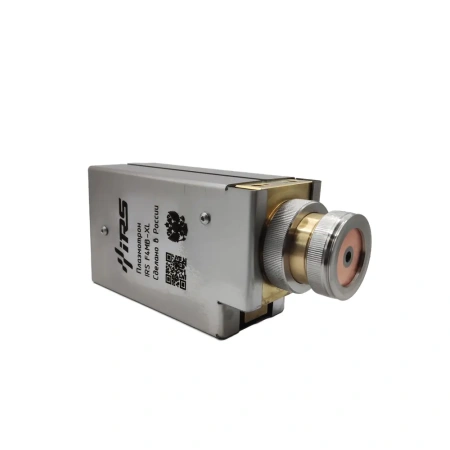

F4MB-XL model is the most common and versatile plasma gun used to process the surfaces of components by applying various types of coatings, such as hardening coatings, anti-corrosion coatings, wear-resistant coatings, heat-resistant coatings, etc. Coating type depends on the material being sprayed. Metal powders, ceramic powders, cobalt-based alloy powders, carbide powders, etc. can be used.
Plasma gun design features coaxially aligned nozzles and electrode, allowing the selection of different powder injector and shield cup diameters for a specific task and maximum productivity. Plasma gun can operate with various combinations of plasma gases, which ensures its applicability for a wide range of coatings.
F4MB-XL model allows spraying on the internal and external surfaces of workpieces at various angles relative to the surface being treated.
F4 Plasma Gun
| No. | Article | Name | METCO Article No. | FST Article No. | Clerici Article No. |
|---|---|---|---|---|---|
| 1 | IRS-100032 | Rear Gun Body Assembly | 1069418 | - | CE-000877 |
| 2 | IRS-100001 | IRS F4MB-XL Center Gun Body | 1069416 | - | CE-000876 |
| 3 | IRS-100002 | Front Gun Body | 1003421 | - | CE-000875 |
| 4 | IRS-100004 | Rear Locking Ring | 1003425 | - | CE-000874 |
| 5 | IRS-100005 | Front Locking Ring | 1003419 | 300.035 | CE-000873 |
| 6 | IRS-100007 | Injector Holder, Double, 90°/75° | 1003430 | 300.037-1 | CE-000829 |
| 6 | IRS-100008 | Injector Holder, Double, 90°/90° | - | - | CE-000826 |
| 6 | IRS-100009 | Injector Holder, Double, 90°/105° | 1003478 | - | CE-000889 |
| 6 | IRS-100010 | Injector Holder, Double, 90°/100° | 1006700 | - | CE-000888 |
| 6 | IRS-100011 | Injector Holder, Double, 100°/100° | 1003479 | - | CE-000887 |
| 6 | IRS-100012 | Injector Holder, Double, 100°/105° | 1003481 | - | - |
| 6 | IRS-100013 | Injector Holder, Double, 105°/105° | 1003480 | - | CE-000886 |
| 6 | IRS-100014 | Injector Holder, Double, 105°/75° | 1008686 | - | - |
| 6 | IRS-100015 | Injector Holder, Double, 75°/75° | 1003432 | - | CE-000828 |
| 6 | IRS-100016 | Injector Holder, 4 x 90° | 1003443 | - | CE-000830 |
| 6 | IRS-100017 | Injector Holder, 105° / 75° / 105° / 75° | 1003444 | - | - |
| 6 | IRS-100018 | Injector Holder, 75° / 90°/ 75° / 90° | 1003445 | - | - |
| 6 | IRS-100006 | Injector Holder, 90° / 75° / 90° / 105° | 1008656 | - | - |
| 6 | IRS-100019 | Injector Holder, 105° / 90° / 105° / 90° | 1003446 | - | - |
| 6 | IRS-100020 | Injector Holder, 105° / 90° / 90° / 75° | 1008657 | - | CE-000831 |
| 7 | IRS-100101 | Insulator Assembly | 1003497 | 300.015 | CE-000870 |
| 8 | IRS-100026 | Gas Ring | 1003499 | 300.018 | CE-000869 |
| 9 | Cooling tube | 1003423 | 300.006 | CE-000891 | |
| 10 | IRS-100024 | Insulating screw | 1003512 | 300.010 | CE-001230 |
| 11 | IRS-100025 | Insulator threaded bushing | - | - | CE-000872 |
| 12 | IRS-100034 | IRS F4MB-XL Cover Assembly | 1069419 | - | CE-000868 |
| 13 | IRS-100054 | IRS F4MB-XL Protective cover part 1 | - | - | - |
| 14 | IRS-100055 | IRS F4MB-XL Protective cover part 2 | - | - | - |
| 15 | IRS-100037 | O-Ring | - | - | - |
| 16 | IRS-100038 | O-Ring | 1038940 | 300.061 | - |
| 17 | IRS-100039 | O-Ring | - | - | - |
| 18 | IRS-100040 | O-Ring | - | - | - |
| 19 | IRS-100041 | O-Ring | 1000359 | 300.007 | - |
| 20 | IRS-100042 | O-Ring | 1001434 | 300.005 | - |
| 21 | Fitting pipe | - | - | - | |
| 22 | IRS-100035 | Screw | - | - | - |
| 23 | IRS-100043 | Screw | - | - | - |
| 24 | IRS-100023 | Screw | - | - | - |
| 25 | IRS-100089 | Screw | - | - | - |
| 26 | IRS-100056 | Screw | - | - | - |
| 27 | IRS-100003 | Screw | - | - | - |
| 28 | IRS-100021 | Screw | - | - | - |
| 29 | Fusion nut | - | - | - | |
| 30 | IRS-100031 | Nut | - | - | - |
| 31 | IRS-100059 | Washer | - | - | - |
| 32 | IRS-100044 | Electrode WLa | 1072006 | 300.008 | CE-001363 |
| 32 | IRS-100045 | Electrode WCe | - | - | - |
| 32 | IRS-100129 | Electrode WTh | - | - | - |
| 33 | IRS-100197 | Powder Injector, 1.8 mm (with undercut), standard | 1038715 | - | CE-000750 |
| 33 | IRS-100198 | Powder Injector, 1.5 mm (with undercut),standard |
1038714 | - | - |
| 33 | IRS-100199 | Powder Injector, 2.0mm (with undercut),standard |
1038716 | - | CE-000751 |
| 34 | IRS-100046 | Nozzle, 5mm | 1003442 | - | CE-001362 |
| 34 | IRS-100047 | Nozzle, 6mm | 1072007 | - | - |
| 34 | IRS-100086 | Nozzle, 7mm | 300002-10/1003407 | 300.029 | - |
| 34 | IRS-100087 | Nozzle, 8mm | 300002-20/1003408 | 300.031 | CE-001790 |
| 35 | IRS-100048 | Powder hose fitting | - | - | - |
| 36 | IRS-100057 | Blind plug | - | - | - |
Applicability of plasma gun for processing the internal surfaces of workpieces is limited by the plasma gun design, so it is necessary to consult with IRS specialists before using it for this purpose.
Plasma gun design allows spraying only with external powder supply.
Powder can be supplied in different ways (perpendicular to the jet, in the same direction as the jet or opposite to the jet).
This variety of powder feed methods ensures optimum energy transfer to the particles, resulting in high coating efficiency.
F4MB-XL and F4MB90-XL plasma guns are direct replacements for F4-MB, F4-HB and F4-HBS plasma guns. Spray parameters and TCPs for F4MB-XL series guns are identical to their corresponding replacements, ensuring that there is no need to change existing parameters and motion programs.
F4MB-XL, F4MB90-XL, F4-MB, F4-HB and F4-HBS plasma guns are unified in terms of main consumables.

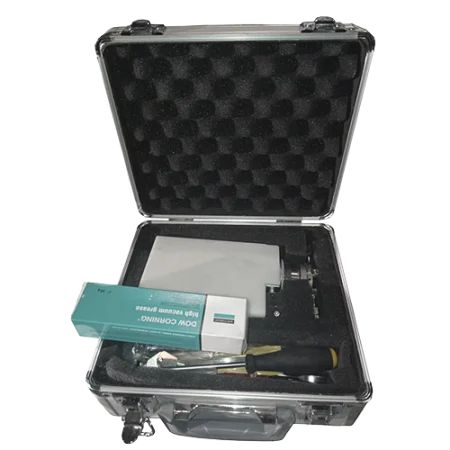

Following optional accessories are available for plasma gun:
- Electrode centering tool
- Gun mounting fixture

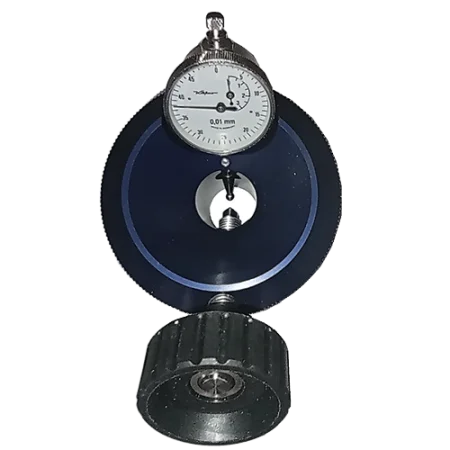

- Injector distance gauge
- Air washing tool
- Injector holders
- Injectors
- Electrodes
- Nozzles
IRS specialists are always ready to consult you regarding the necessary equipment configuration suitable for a specific production task.
