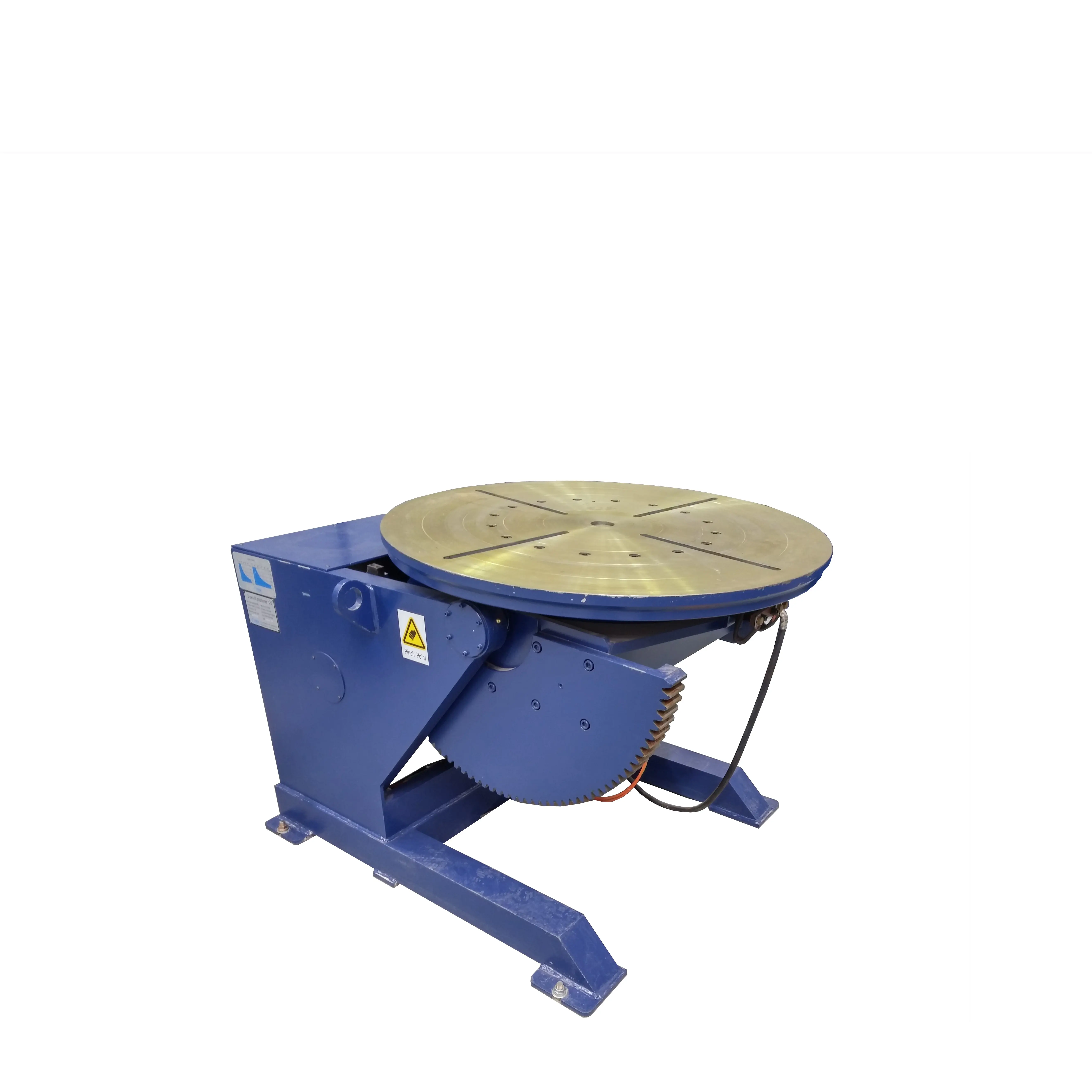

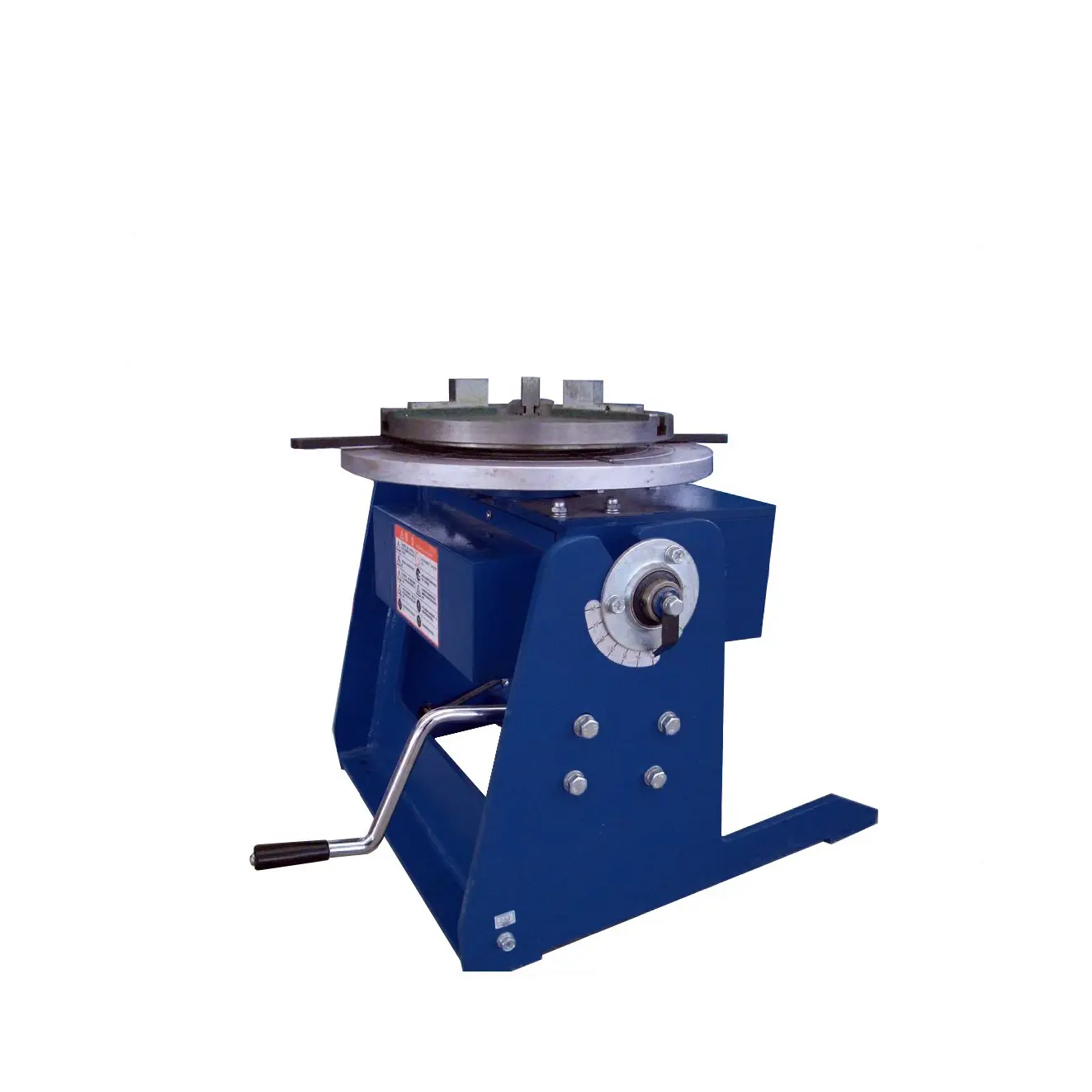

.jpg.webp?17612879942238 "Welding Positioners")

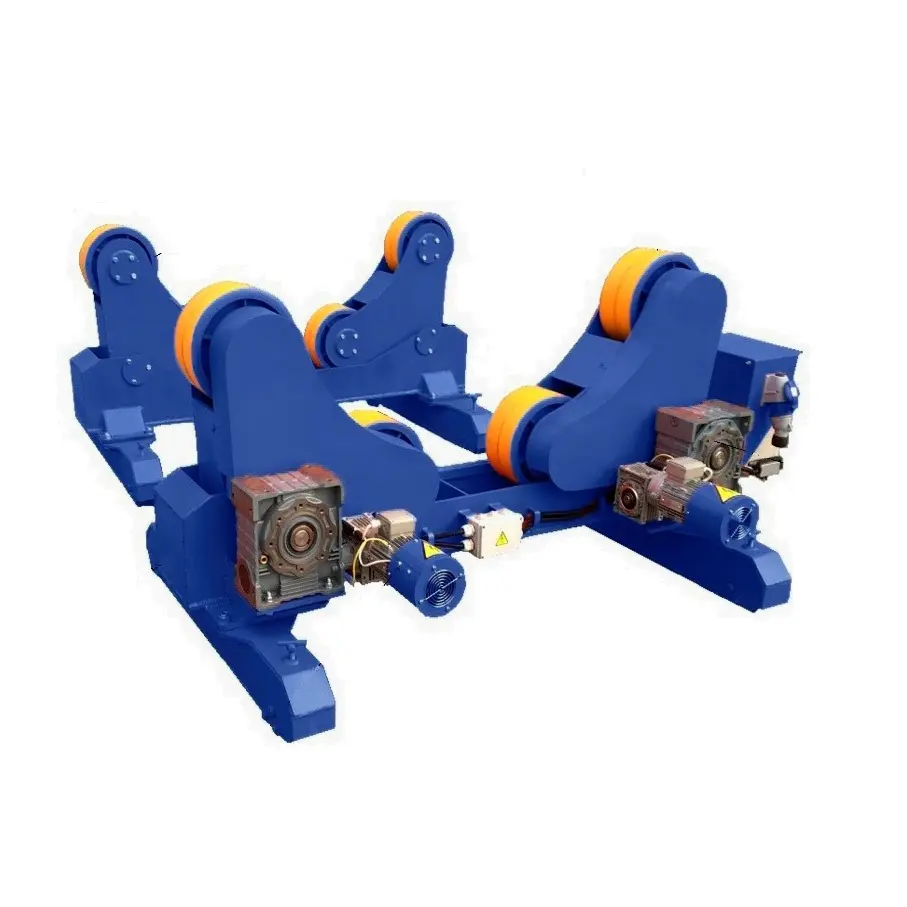

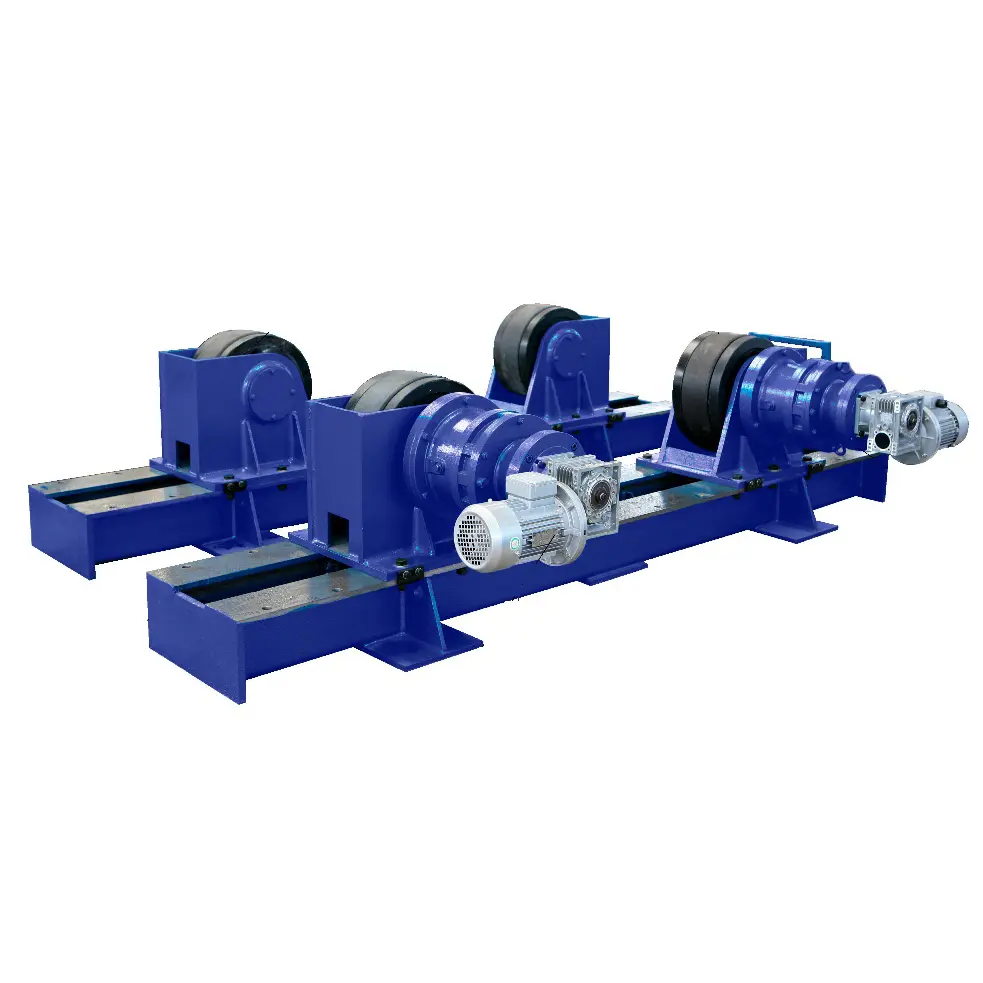

%20копия.jpg.webp?17612879942386 "Roller Rotators")
Welding Automation
Welding is a complex, multi-factor technological process, the result of which must be a high-quality welded joint.
To ensure stable quality of welded joints, and consequently reduce economic losses and labor costs associated with defects, as well as to increase labor productivity, manufacturing facilities implement and use automatic welding systems.
Welding automation is used in many industrial sectors: energy, automotive manufacturing, mechanical engineering, food industry, aerospace industry, and defense production.
Intellectual Robot Systems LLC supplies and integrates turnkey comprehensive solutions for automatic longitudinal seam welding from the Austrian company Fronius, tailored to customer requirements, as well as develops and manufactures its own equipment for welding longitudinal seams of shells and metal box corners.
Fronius FCP 600-2 – 1600-2
FCP 600 – 1600-2 linear welding stations are designed for welding longitudinal seams
of shells with a wall thickness of 0.3–3.0 mm and a welding length of up to 1600 mm.
Processes: TIG, Plasma, MIG/MAG, CMT (Cold Metal Transfer)
|
|
FCP 600-2 | FCP 1100-2 | FCP 1300-2 | FCP 1600-2 |
|
Maximum workpiece length / welding length |
600 mm | 1100 mm | 1300 mm | 1600 mm |
| Maximum workpiece diameter | 800 mm | |||
| Minimum inner diameter (type 2) | 50 mm | 80 mm | 90 mm | 100 mm |
| Wall thickness (type 2) | 0.3 - 3.0 mm | |||
| Minimum inner diameter (type 2S) | 80 mm | 115 mm | 125 mm | 140 mm |
| Wall thickness (type 2S) | 0.5 - 10.0 mm | |||
- Raised machine frame.
- Height-adjustable roller support for workpiece loading.
- Variable-diameter mandrel.
- Workpiece stop with scale.
- Clamping shoes and backing bar made of stainless steel.
- Functions: AVC, oscillation.
- Laser pointers for weld seam centering.
- LED work light.
- High-performance cooling unit for the backing bar and torch.
Fronius FCP 2100-2 – 4100-2
Linear welding stations are designed for welding longitudinal seams of cylindrical, conical
and flat sheets with a wall thickness of 0.5–10 mm and a welding length of up to 4100 mm
Processes: TIG, Plasma, MIG/MAG, CMT (Cold Metal Transfer)
|
|
FCP 2100-2 | FCP 2600-2 | FCP 3100-2 | FCP 4100-2 |
|
Maximum workpiece length / welding length |
2100 mm | 2600 mm | 3100 mm | 4100 mm |
| Maximum workpiece diameter | 800 mm | |||
| Minimum inner diameter (wall thickness 0.5 - 3 mm) | 165 mm | 160 mm | 220 mm | 280 mm |
| Minimum inner diameter (wall thickness 0.5 - 5 mm) | 185 mm | 210 mm | 245 mm | 315 mm |
| Minimum inner diameter (wall thickness 0.5 - 10 mm) | 200 mm | 225 mm | 260 mm | 335 mm |
| Wall thickness Type 2 / 2S | 0.5 - 3.0 mm / 0.5 - 10 mm | |||
- Raised machine housing.
- Variable-diameter mandrel.
- Workpiece stop.
- Clamping shoes and backing bar made of stainless steel.
- Functions: ARC voltage control (AVC), oscillation.
- Laser pointers for workpiece seam centering. LED illumination lamp.
- High-performance cooling unit for the backing bar and torch.
