Automatic twin-arc surfacing line of a copper-leading band on special-purpose products
Purpose of the complex: automatic twin-arc surfacing line of a copper-leading band on special-purpose products.
Material of parts: steel
Surfacing material: copper alloy
Product characteristics: small-diameter hollow tube (cartridge)

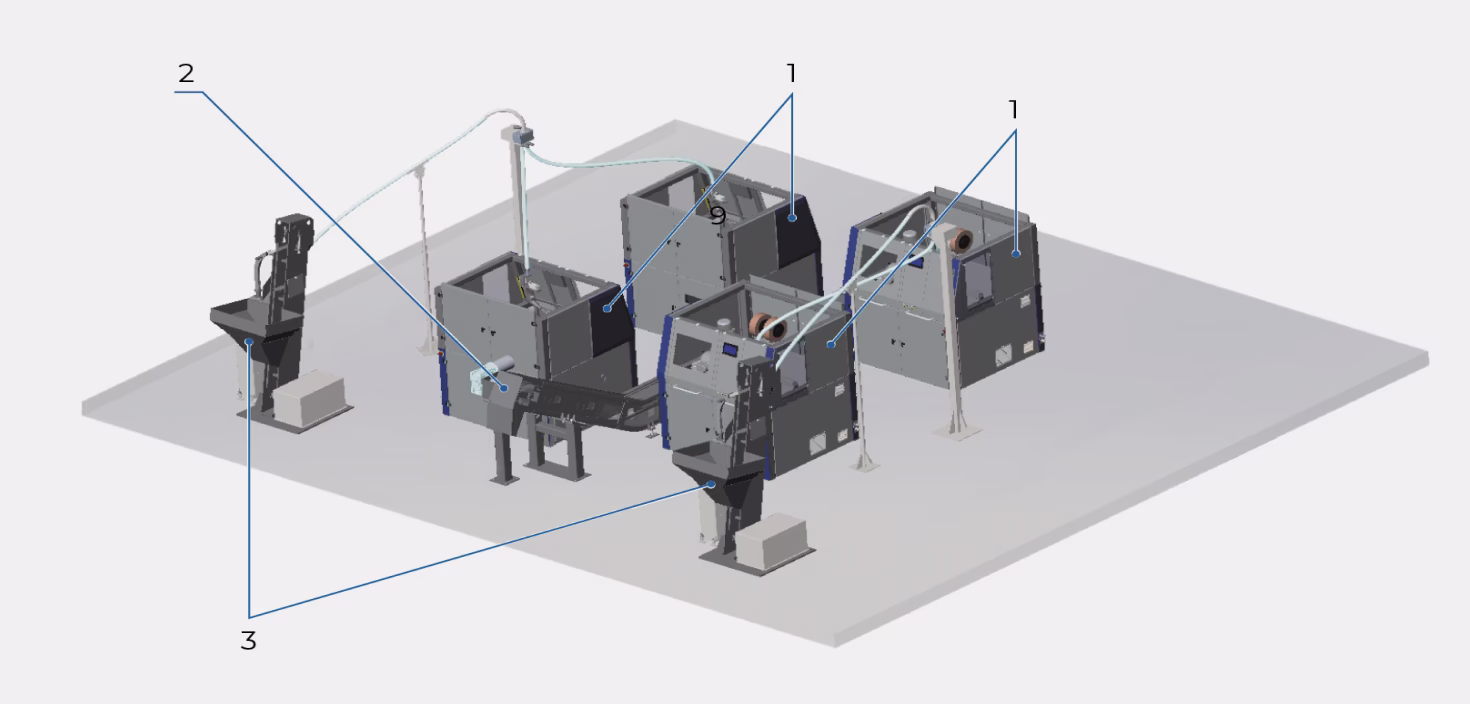

Equipment Composition
- Twin-arc surfacing automatic machine for copper-leading band (CLB) (consisting of a frame, carriage for positioning welding heads, loading/unloading system for products) — 4 units
- Transport system based on a floor conveyor — 1 unit
- Elevator-loading devices, supplying products with 30 mm diameter to 4 surfacing machines from unorganized containers — 2 units
- Compact cooling unit for cooling products after surfacing — 4 units
- Set of fixtures for 2 types of products for each of the 4 surfacing machines (for product diameters 23 mm and 30 mm). Additionally, a set of fixtures for one surfacing machine to work with product diameters 40 mm and 57 mm, provided manual loading/unloading of products of these diameters into the surfacing machine — 1 unit
System Components
Elevator-loading device
Automatic arc surfacing unit
Actuating mechanism (clamping chuck and torch)
Examples of Finished Products
Gallery of completed projects
