Top 5 Best Manual Clamp

Modular clamps are heavy-duty clamps designed for operation in harsh, demanding environments. These reinforced clamps have an extended service life because they are equipped with forged and hardened bushings and alloy steel pins. The clamping force produced by these clamps can exceed that of a standard mechanical clamp by more than 10 times. This is achieved through increased strength and rigidity of the construction, ensuring more reliable and durable use while maintaining high accuracy and repeatability requirements.

Using this type of clamp is most effective for serial production in various industrial sectors, such as:

• automotive manufacturing;
• aircraft manufacturing;
• railcar manufacturing;
• shipbuilding.

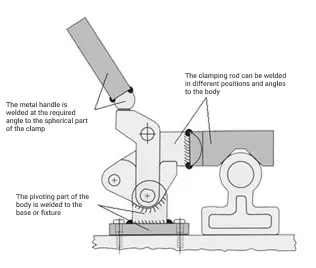

Before purchasing a modular clamp, it is important to note that its design is weldable and supplied unassembled. Depending on the task, the designer can arrange the clamping rod, handle, and base in different positions and at different angles relative to each other, welding them accordingly. A weldable clamp, depending on its structure, is either bolted or welded to other technological fixtures or the workpiece. It should be considered that before welding, the clamp components must be preheated to 200 ℃. The handle and rod must be welded to the body when the clamp is disassembled.
