Overview of Universal Assembly and Welding Tables

15 September 2021

Overview of Universal Assembly and Welding Tables

D16 System — 16 system. Hole diameter 16 mm. Material thickness 12 mm.

Fragment of D16 PROFIPlusLINE (PL) tabletop — D16 PROFIPlusLINE (PL). Diagonal coordinate grid 50×50 mm. Three rows of holes on the table's side surfaces, coordinate grid 50 mm in the top, middle, and bottom row.

Fragment of D16 PROFIEcoLINE (PE) tabletop — D16 PROFIEcoLINE (PE). Coordinate grid 50×50 mm. Three rows of holes on the table's side surfaces, coordinate grid 50 mm in the top, middle, and bottom row.

D22 System — 22 system. Hole diameter 22 mm. Material thickness 18 mm.

Fragment of D22 PROFIPlusLINE (PL) tabletop — D22 PROFIPlusLINE (PL). Diagonal coordinate grid 100×100 mm. Two rows of holes on the table's side surfaces, coordinate grid 50 mm.

Fragment of D22 PROFIPremiumLINE (PP) tabletop — D22 PROFIPremiumLINE (PP). Coordinate grid 50×50 mm. Three rows of holes on the table's side surfaces, diagonal grid 50×50 mm.

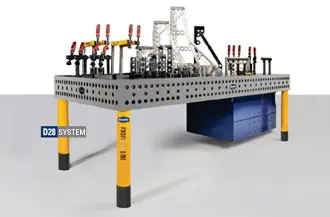

D28 System — 28 system. Hole diameter 28 mm. Material thickness 25 mm.

Fragment of D28 HobbyLINE (H) tabletop — D28 HobbyLINE (H). Coordinate grid 100×100 mm. Tabletop about 25 mm thick with system holes arranged on a 100×100 mm grid.

Fragment of D28 PROFIEcoLINE (PE) tabletop — D28 PROFIEcoLINE (PE). Coordinate grid 100×100 mm. Three rows of holes on the table's side surfaces, 50 mm grid in the top row, additional 100 mm grid in the middle and bottom row.

Fragment of D28 PROFIPlusLINE (PL) tabletop — D28 PROFIPlusLINE (PL). Diagonal coordinate grid 100×100 mm. Three rows of holes on the table's side surfaces, 50 mm grid in top and bottom rows, additional 100 mm grid in the middle row.

Fragment of D28 PROFIPremiumLINE (PP) tabletop — D28 PROFIPremiumLINE (PP). Coordinate grid 50×50 mm. Three rows of holes on the table's side surfaces, 50 mm grid in top and bottom rows, additional 100 mm grid in the middle.

Go to the full equipment catalog
